Accessory Drive Auxiliary Belt Replacement (Air Conditioning Compressor)

Accessory Drive Auxiliary Belt Replacement (Air Conditioning Compressor) Single Use Fasteners and Components Accessory Drive Auxiliary Belt Accessory Drive Primary Belt Special Tools EN-51767-2 Universal Stretchy Belt Installer Equivalent regional tools: Special Tools Removal Procedure

Accessory Drive Auxiliary Belt Replacement (Air Conditioning Compressor) — figure 1

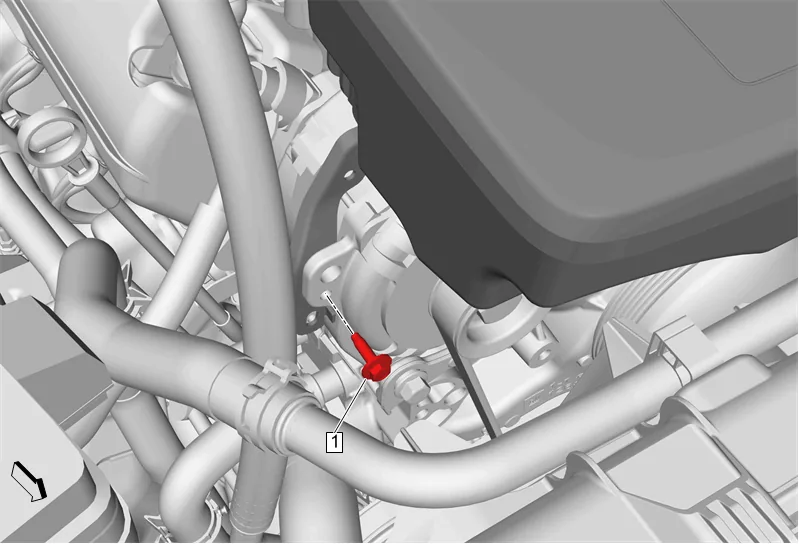

1. Air Cleaner Outlet Duct Bracket Bolt (1) » Remove
2. Remove engine wiring harness from air cleaner outlet duct bracket.

Accessory Drive Auxiliary Belt Replacement (Air Conditioning Compressor) — figure 2

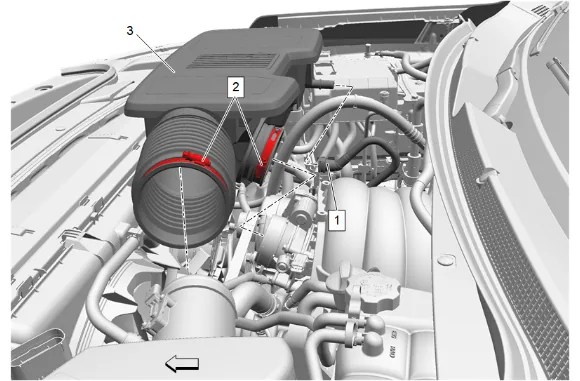

3. Positive Crankcase Ventilation Fresh Air Tube (1) » Disconnect — Plastic Collar Quick Connect Fitting Service
4. Air Cleaner Outlet Duct Clamp (2) » Loosen [2x]
5. Air Cleaner Outlet Duct (3) » Remove

Accessory Drive Auxiliary Belt Replacement (Air Conditioning Compressor) — figure 3

Note

The accessory drive primary belt is not reusable. Some components not shown for graphic clarity.

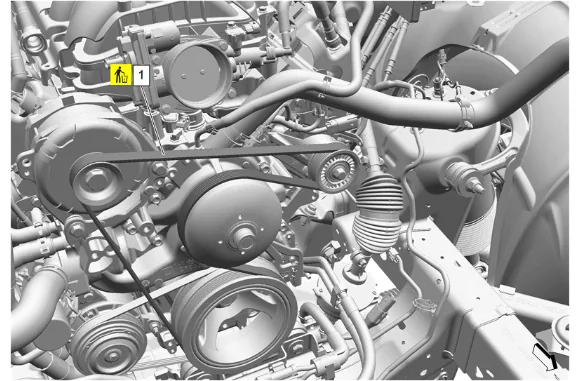

6. Using a suitable tool, cut the accessory drive primary belt (1).
7. Accessory Drive Primary Belt (1) » Remove and DISCARD

Accessory Drive Auxiliary Belt Replacement (Air Conditioning Compressor) — figure 4

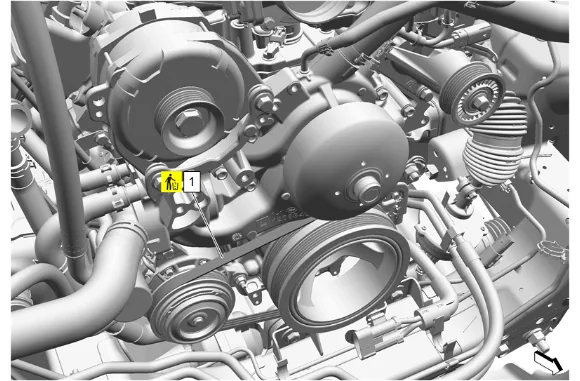

Note

The accessory drive auxiliary belt is not reusable.

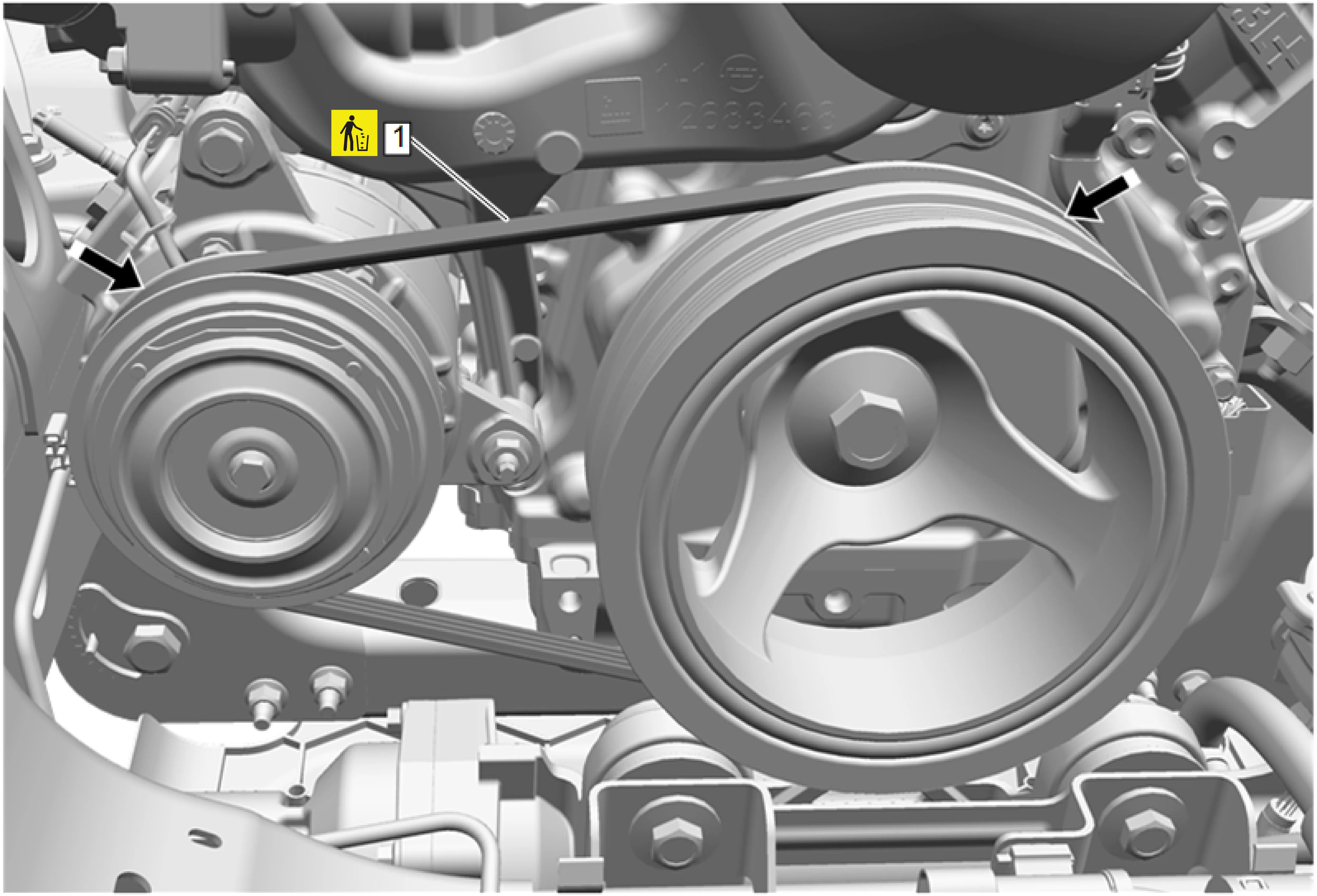

8. Using a suitable tool, cut the accessory drive auxiliary belt (1).
9. Accessory Drive Auxiliary Belt (1) » Remove and DISCARD Installation Procedure

Note

The OEM replacement stretchy accessory drive auxiliary belt is packaged with a disposable installation tool and installation instructions. Some components not shown for graphic clarity.

1. Install the accessory drive auxiliary belt following the instructions included with the accessory drive auxiliary belt.

Accessory Drive Auxiliary Belt Replacement (Air Conditioning Compressor) — figure 5

2. Inspect the accessory drive auxiliary belt (1) for proper installation and alignment.

Accessory Drive Auxiliary Belt Replacement (Air Conditioning Compressor) — figure 6

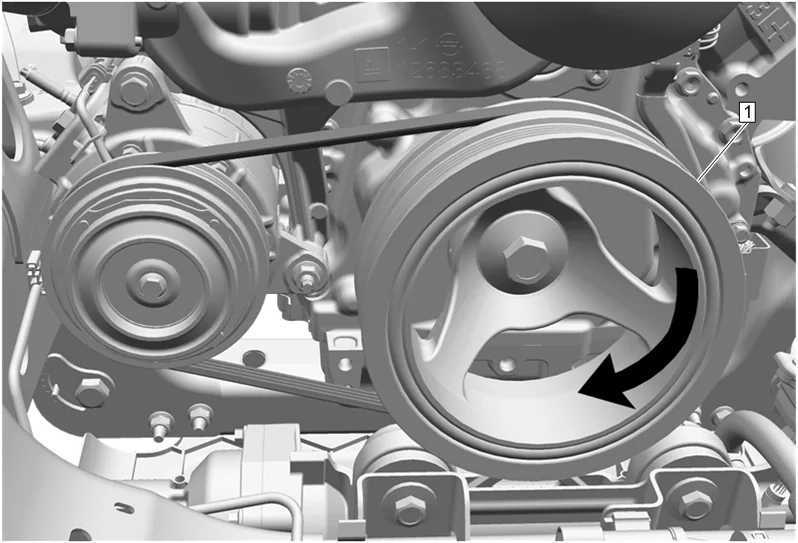

3. Rotate the crankshaft balancer (1) an additional 360 degrees to ensure proper accessory drive auxiliary belt installation.

Accessory Drive Auxiliary Belt Replacement (Air Conditioning Compressor) — figure 7

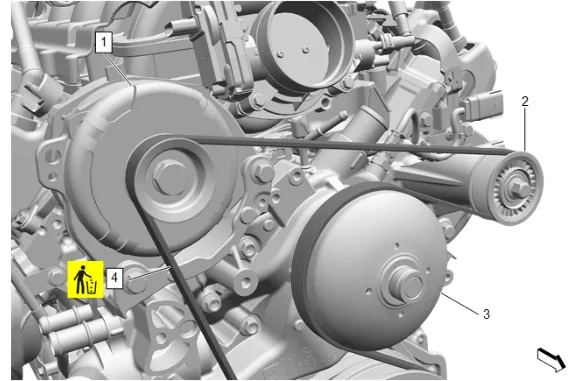

4. Position the accessory drive primary belt (4) on the belt idler pulley (2), fan and water pump pulley (3) and generator (1).

Accessory Drive Auxiliary Belt Replacement (Air Conditioning Compressor) — figure 8

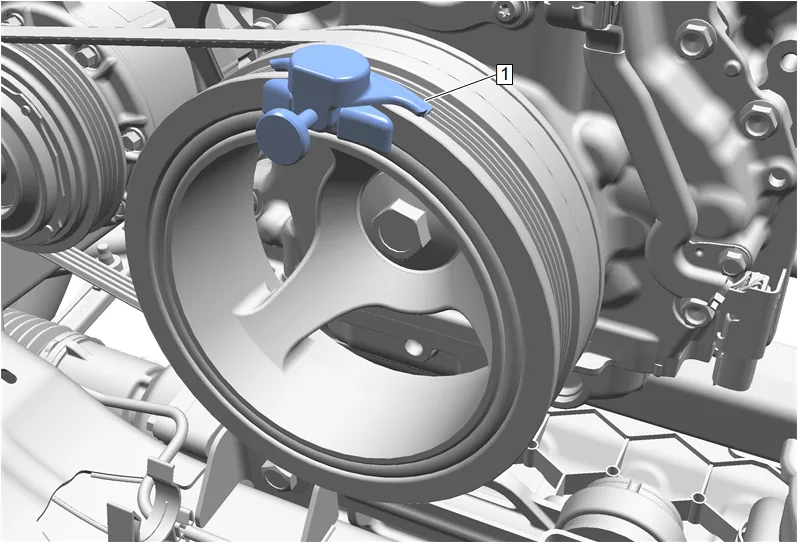

5. Install EN-51767-2 Universal Stretchy Belt Installer (1) onto the crankshaft balancer.

Accessory Drive Auxiliary Belt Replacement (Air Conditioning Compressor) — figure 9

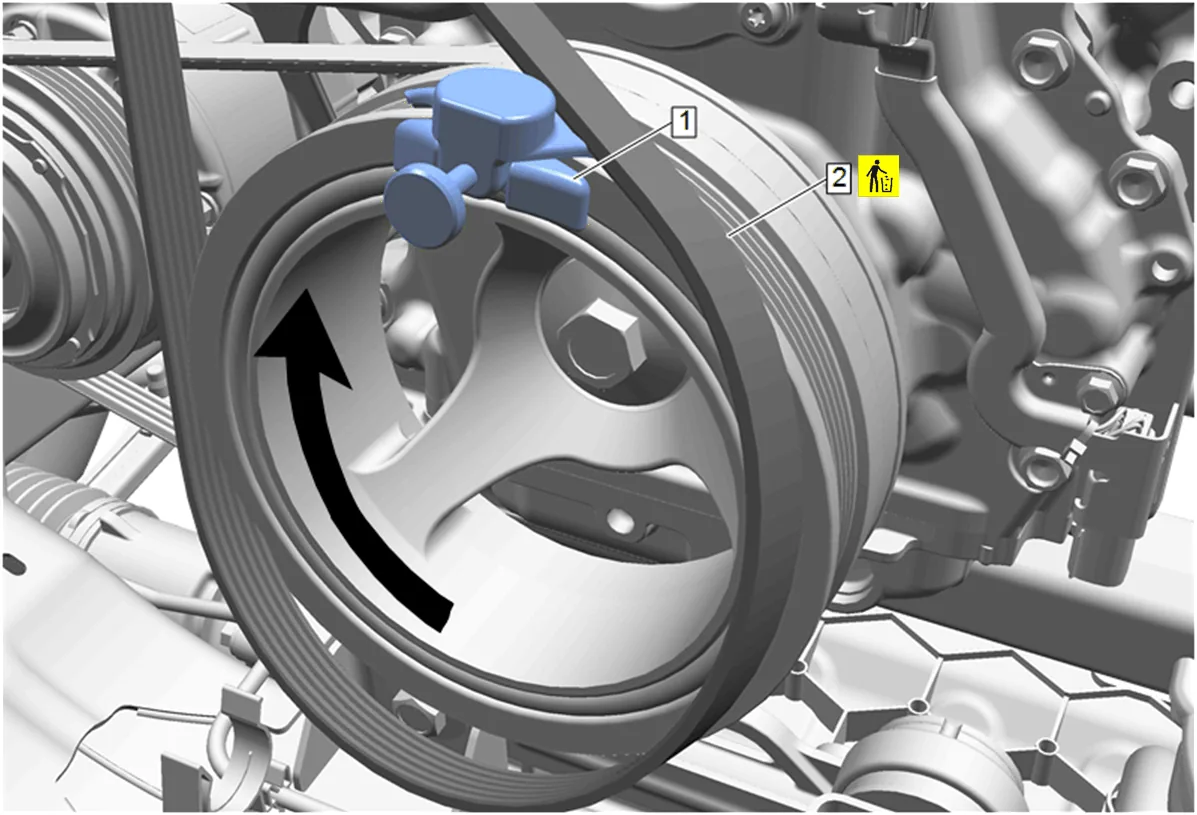

6. Position the accessory drive primary belt (2) on the crankshaft balancer.
7. Slowly rotate the crankshaft balancer in a clockwise direction until the accessory drive primary belt (2) fully seats on the crankshaft balancer.
8. Remove EN-51767-2 Universal Stretchy Belt Installer (1) from the crankshaft balancer.

Accessory Drive Auxiliary Belt Replacement (Air Conditioning Compressor) — figure 10

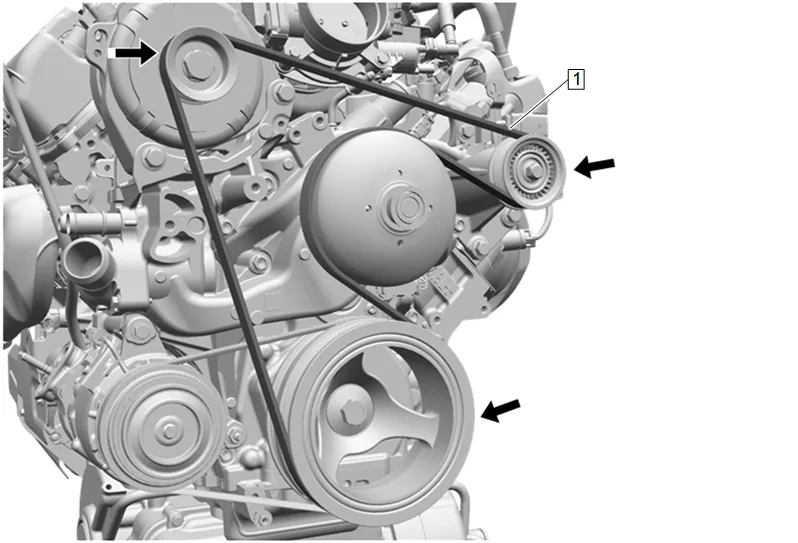

9. Inspect the accessory drive primary belt (1) for proper installation and alignment.

Accessory Drive Auxiliary Belt Replacement (Air Conditioning Compressor) — figure 11

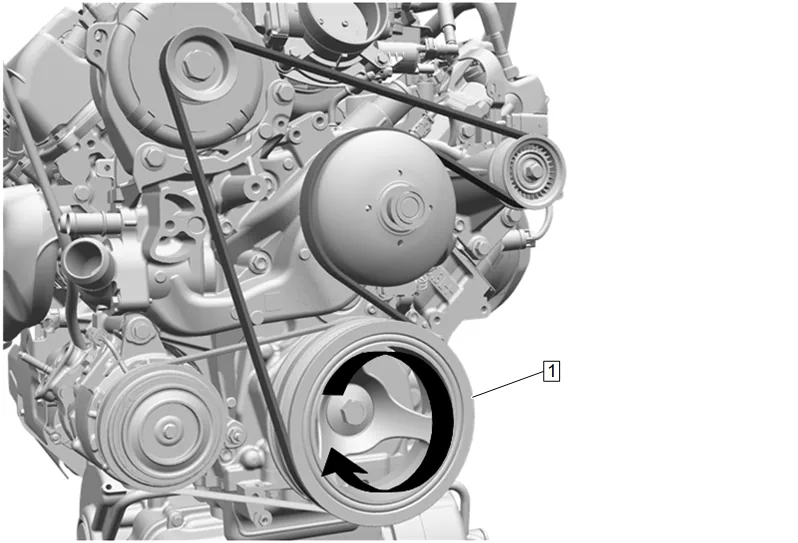

10. Rotate the crankshaft balancer (1) and additional 360 degrees to ensure proper accessory drive primary belt installation.

11. Air Cleaner Outlet Duct (3) » Install

Caution

Refer to Fastener Caution.

12. Air Cleaner Outlet Duct Clamp (2) » Tighten [2x] — Fastener Specifications

13. Positive Crankcase Ventilation Fresh Air Tube (1) » Connect — Plastic Collar Quick Connect Fitting Service

14. Air Cleaner Outlet Duct Bracket Bolt (1) » Install and tighten — Fastener Specifications

15. Install engine wiring harness to air cleaner outlet duct bracket.
