Front Floor Console Base Replacement

Removal Procedure

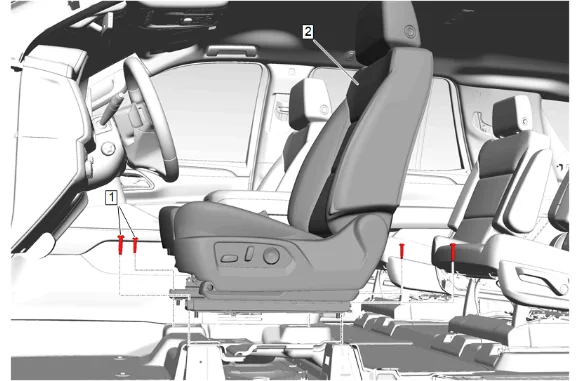

Front Floor Console Base Replacement — figure 1

1. Front Seat (2) » Remove [2x] — Front Seat Removal and Installation

Front Floor Console Base Replacement — figure 2

2. Using a flat-bladed plastic trim tool, release the retaining clips.
3. Front Floor Console Lower Applique (1) » Remove

Front Floor Console Base Replacement — figure 3

4. Using a flat-bladed plastic trim tool, release the retaining clips.
5. Front Floor Console Applique (1) » Remove

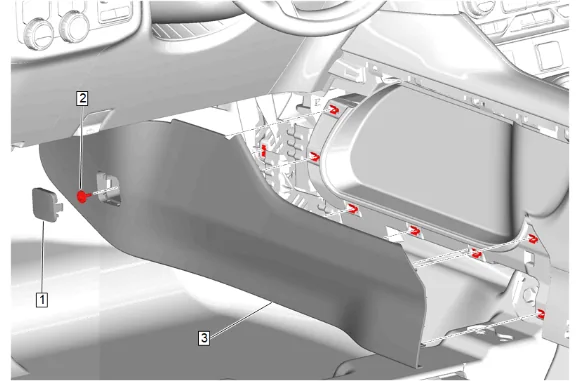

Front Floor Console Base Replacement — figure 4

Note

Use a flat bladed plastic trim tool.

6. Front Floor Console Extension Panel Bolt Access Hole Cover (1) » Remove
7. Front Floor Console Extension Bolt (2) » Remove
8. Front Floor Console Extension Panel (3) » Remove

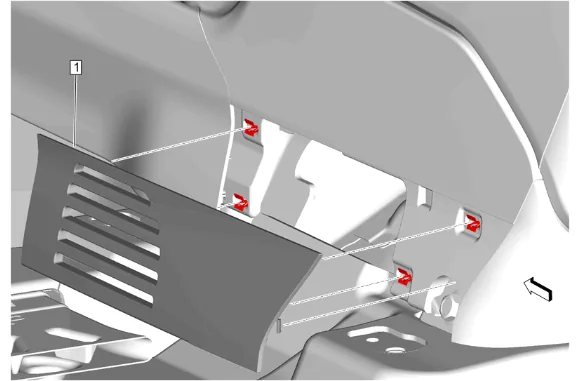

Front Floor Console Base Replacement — figure 5

9. Using a flat-bladed plastic trim tool, release the retaining clips.
10. Front Floor Console Bolt Access Hole Cover (1) » Remove

Front Floor Console Base Replacement — figure 6

Note

You may have to slide the armrest back to better access the retainers.

11. Using a flat-bladed plastic trim tool, release the retaining clips.
12. Front Floor Console Rear Trim Lower Panel (1) » Remove

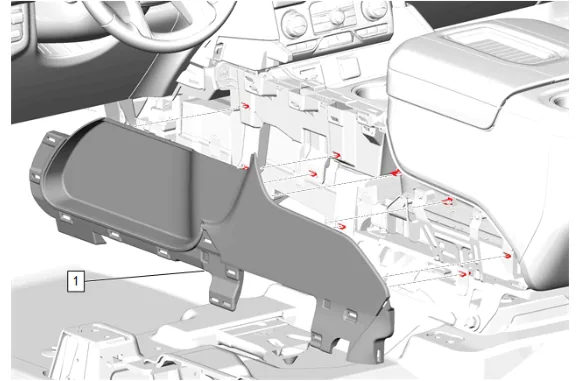

Front Floor Console Base Replacement — figure 7

13. Using a flat-bladed plastic trim tool, release the retaining clips.
14. Front Floor Rear Console Side Trim Panel (1) » Remove

Front Floor Console Base Replacement — figure 8

15. Using a flat-bladed plastic trim tool, release the retaining clips.
16. Front Floor Console Lower Applique (1) » Remove

Front Floor Console Base Replacement — figure 9

17. Using a flat-bladed plastic trim tool, release the retaining clips.
18. Front Floor Console Applique (1) » Remove

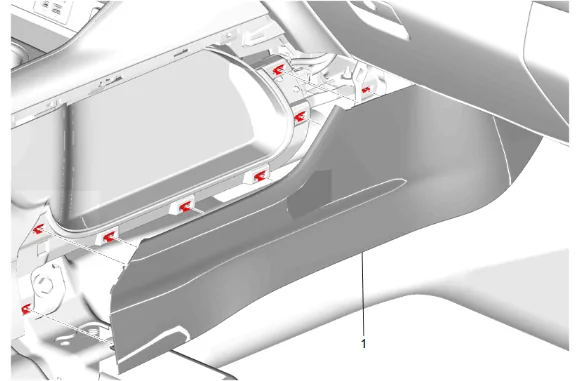

Front Floor Console Base Replacement — figure 10

Note

Use a flat bladed plastic trim tool.

19. Front Floor Console Extension Panel (1) » Remove

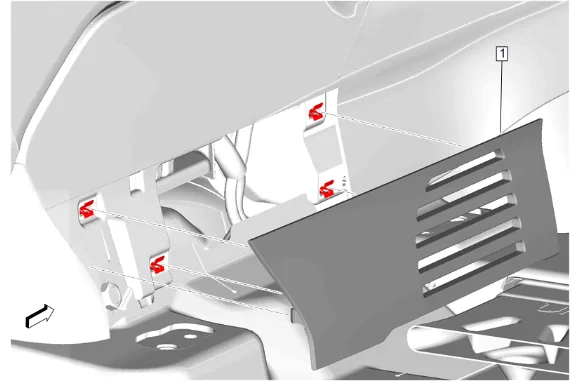

Front Floor Console Base Replacement — figure 11

20. Using a flat-bladed plastic trim tool, release the retaining clips.
21. Front Floor Console Bolt Access Hole Cover (1) » Remove

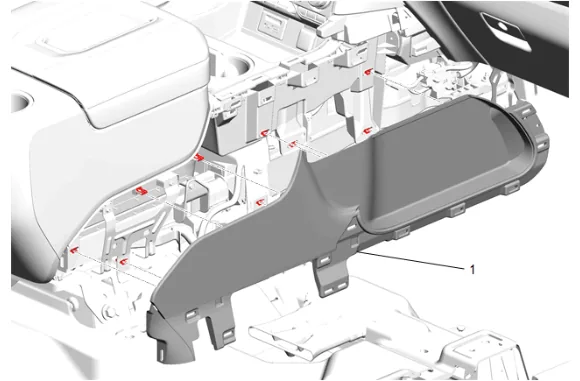

Front Floor Console Base Replacement — figure 12

22. Using a flat-bladed plastic trim tool, release the retaining clips.
23. Disconnect and reposition harness as necessary.
24. Front Floor Rear Console Side Trim Panel (1) » Remove

Front Floor Console Base Replacement — figure 13

25. Front Floor Console Rear Cup Holder Liner (1) » Remove
26. Front Floor Console Cup Holder Bolt (2) » Remove
27. Using a flat-bladed plastic trim tool, release the retaining clips.
28. Front Floor Console Rear Cup Holder (3) » Remove

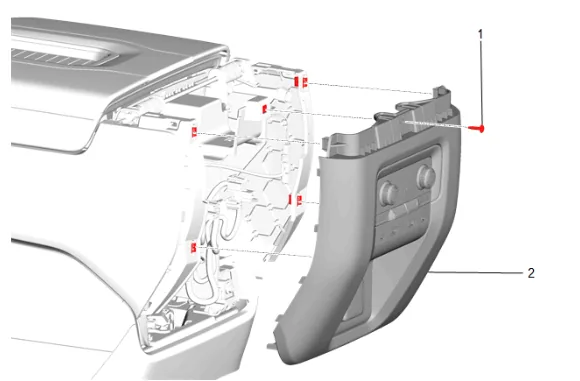

Front Floor Console Base Replacement — figure 14

29. Front Floor Console Rear Cover Bolt (1) » Remove
30. Using a flat-bladed plastic trim tool, release the retaining clips.
31. Front Floor Console Rear Trim Panel (2) » Remove
32. Disconnect the electrical connectors.

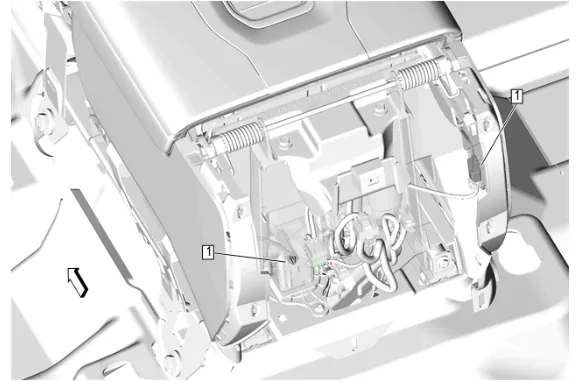

Front Floor Console Base Replacement — figure 15

33. Disconnect the front floor console bin lamp connector (1).

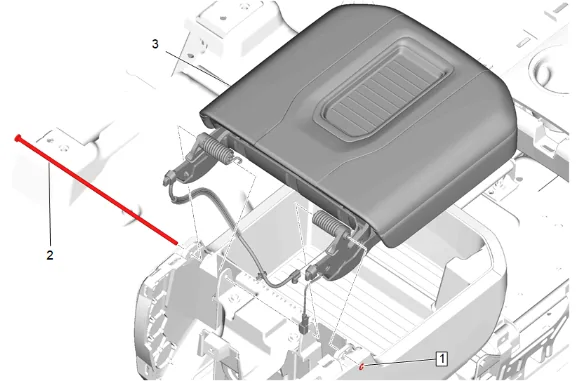

Front Floor Console Base Replacement — figure 16

Note

Use a suitable tool.

34. Front Floor Console Armrest Hinge Clip (1) » Remove

Warning

The armrest hinge springs are under pressure. Remove the pivot pin carefully in order to avoid bodily injury.

35. Front Floor Console Armrest Pivot Pin (2) » Remove
36. Front Floor Console Armrest (3) » Reposition

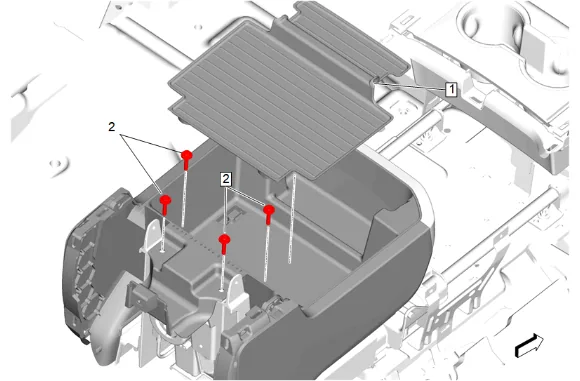

Front Floor Console Base Replacement — figure 17

Note

Some components not shown for graphic clarity.

37. Front Floor Console Compartment Liner (1) » Remove
38. Front Floor Console Bracket Bolt (2) » Remove [4x]

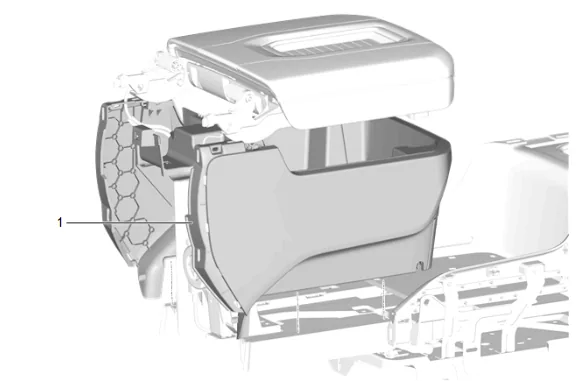

Front Floor Console Base Replacement — figure 18

39. Front Floor Console Compartment (1) » Remove

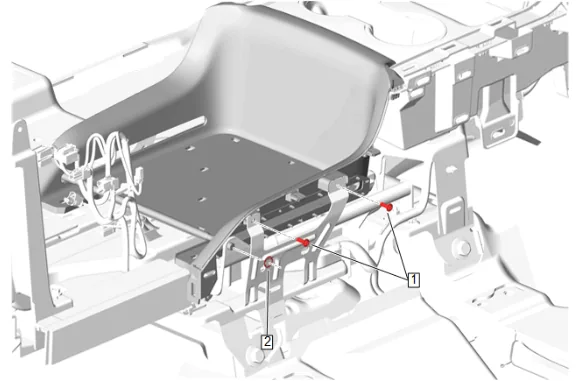

Front Floor Console Base Replacement — figure 19

40. Front Floor Console Stowage Tray Bolt (1) » Remove [2x]

Note

Use a suitable tool.

41. Front Floor Console Armrest Hinge Clip (2) » Remove

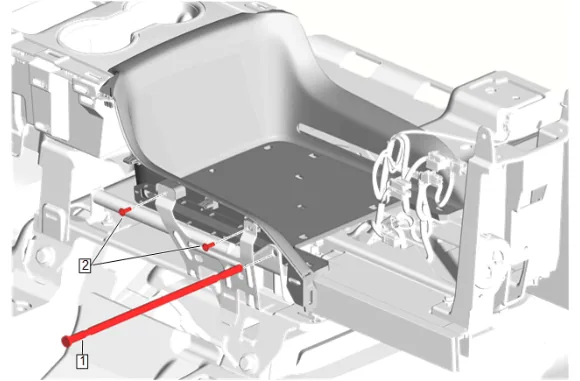

Front Floor Console Base Replacement — figure 20

42. Front Floor Console Armrest Pivot Pin (1) » Remove
43. Front Floor Console Stowage Tray Bolt (2) » Remove [2x]

Front Floor Console Base Replacement — figure 21

44. Front Floor Console Stowage Tray (1) » Remove

Front Floor Console Base Replacement — figure 22

45. Release the front floor console armrest cable (1) from the cable union and front floor console base.

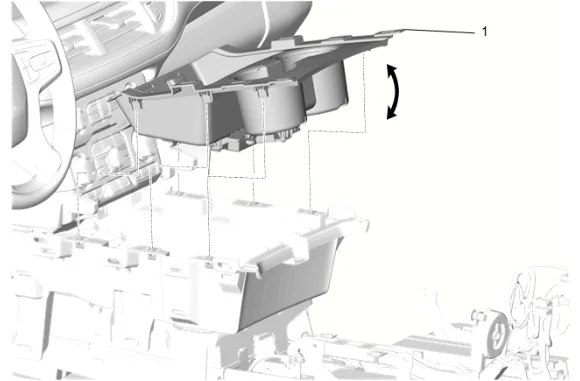

Front Floor Console Base Replacement — figure 23

46. Pull up on the rear of the front floor console cup holder trim plate (1) to start to release the retainer clips and work your way forward.
47. Disconnect the electrical connectors.
48. Front Floor Console Cup Holder Trim Plate (1) » Remove

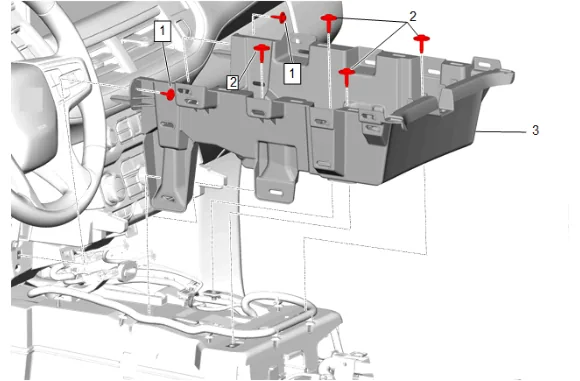

Front Floor Console Base Replacement — figure 24

49. Disconnect and reposition harness as necessary.
50. Front Floor Console Retainer Bolt (1) » Remove [2x]
51. Front Floor Console Intermediate Bracket Bolt (2) » Remove [4x]
52. Front Floor Console Carrier (3) » Remove

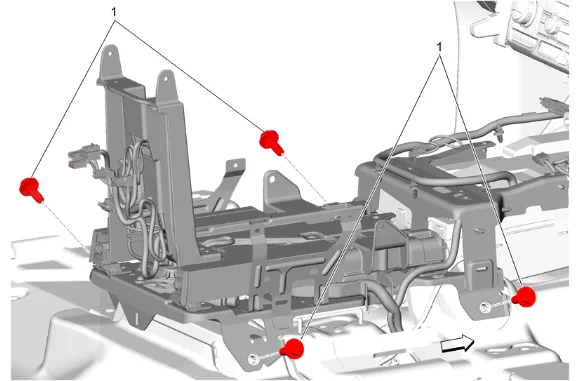

Front Floor Console Base Replacement — figure 25

53. Front Floor Console Bolt (1) » Remove [4x]

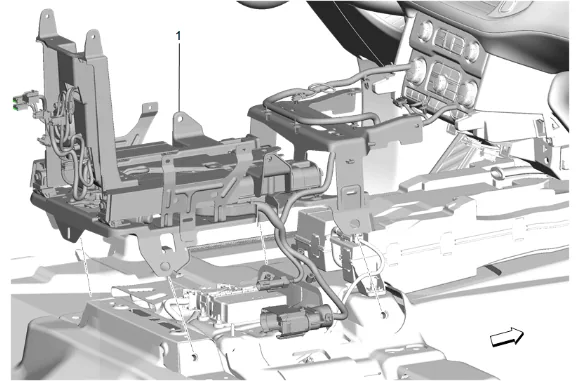

Front Floor Console Base Replacement — figure 26

54. Disconnect and reposition harness as necessary.

55. Front Floor Console Base(1) » Remove

56. Transfer components as necessary. Installation Procedure

57. Front Floor Console Base(1) » Install

58. Connect and position the wiring harness.

Caution

Refer to Fastener Caution.

3. Front Floor Console Bolt (1) » Install and tighten [4x] — Fastener Specifications

4. Connect and position the wiring harness.

5. Front Floor Console Carrier (3) » Install

6. Front Floor Console Intermediate Bracket Bolt (2) » Install and tighten [4x] — Fastener Specifications

7. Front Floor Console Retainer Bolt (1) » Install and tighten [2x] — Fastener Specifications

8. Connect the electrical connectors.

9. Front Floor Console Cup Holder Trim Plate (1) » Install

10. Connect the front floor console armrest cable (1) to the cable union and front floor console base.

11. Front Floor Console Stowage Tray (1) » Install

12. Front Floor Console Armrest Pivot Pin (1) » Install

13. Front Floor Console Stowage Tray Bolt (2) » Install and tighten [2x] — Fastener Specifications

14. Front Floor Console Stowage Tray Bolt (1) » Install and tighten [2x] — Fastener Specifications

15. Front Floor Console Armrest Hinge Clip (2) » Install

16. Front Floor Console Compartment (1) » Install

Note

Some components not shown for graphic clarity.

17. Front Floor Console Bracket Bolt (2) » Install and tighten [4x] — Fastener Specifications

18. Front Floor Console Compartment Liner (1) » Install

19. Front Floor Console Armrest (3) » Install

20. Front Floor Console Armrest Pivot Pin (2) » Install

21. Front Floor Console Armrest Hinge Clip (1) » Install

22. Connect the front floor console bin lamp connector (1).

23. Connect the electrical connectors.

24. Front Floor Console Rear Trim Panel (2) » Install

25. Front Floor Console Rear Cover Bolt (1) » Install and tighten — Fastener Specifications

26. Front Floor Console Rear Cup Holder (3) » Install

27. Front Floor Console Cup Holder Bolt (2) » Install and tighten — Fastener Specifications

Note

Make sure the liner is properly seated under the front floor console compartment bezel.

28. Front Floor Console Rear Cup Holder Liner (1) » Install

29. Connect and position the wiring harness.

30. Front Floor Rear Console Side Trim Panel (1) » Install

31. Front Floor Console Bolt Access Hole Cover (1) » Install

32. Front Floor Console Extension Panel (1) » Install

33. Front Floor Console Applique (1) » Install

34. Front Floor Console Lower Applique (1) » Install

35. Front Floor Rear Console Side Trim Panel (1) » Install

36. Front Floor Console Rear Trim Lower Panel (1) » Install

37. Front Floor Console Bolt Access Hole Cover (1) » Install

38. Front Floor Console Extension Panel (3) » Install

39. Front Floor Console Extension Bolt (2) » Install and tighten — Fastener Specifications

40. Front Floor Console Extension Panel Bolt Access Hole Cover (1) » Install

41. Front Floor Console Applique (1) » Install

42. Front Floor Console Lower Applique (1) » Install

43. Return the armrest compartment to the close position.

44. Front Seat (2) » Install [2x] — Front Seat Removal and Installation
