Engine Oil Pressure and Temperature Sensor Replacement

Engine Controls and Fuel - 5.3L L84 or 6.2L L87 | Repair Instructions | Document ID: 5537688 Single Use Fasteners and Components Engine Oil Pressure Sensor Gasket Removal Procedure

1. Raise and support the vehicle. Lifting and Jacking the Vehicle.

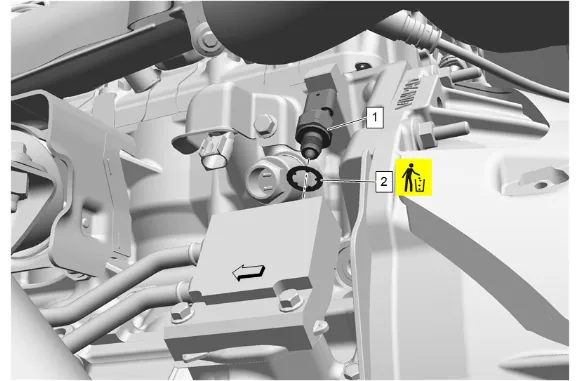

Engine Oil Pressure and Temperature Sensor Replacement — figure 1

2. Disconnect the electrical connector.

3. Engine Oil Pressure and Temperature Sensor (1) » Remove

4. Engine Oil Pressure Sensor Gasket (2) » Remove and DISCARD Installation Procedure

5. Engine Oil Pressure Sensor Gasket (2) » Install NEW

Caution

Refer to Component Fastener Tightening Caution.

2. Engine Oil Pressure and Temperature Sensor (1) » Install and tighten — Fastener Specifications
3. Connect the electrical connector.
4. Remove the supports and lower the vehicle. Lifting and Jacking the Vehicle
