Rear Suspension Lateral Link Replacement

Removal Procedure

1. Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation

Rear Suspension Lateral Link Replacement — figure 1

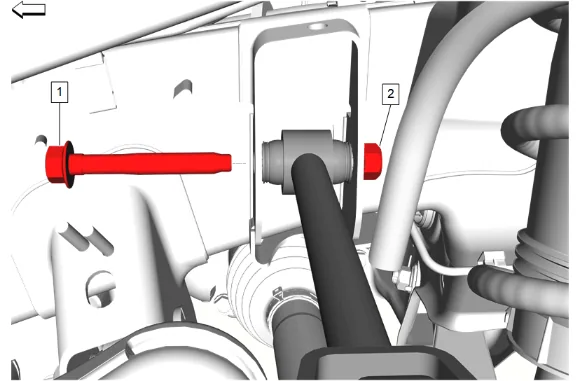

2. Rear Suspension Upper Control Arm Inner Nut (2) » Remove
3. Rear Suspension Upper Control Arm Inner Bolt (1) » Remove

Rear Suspension Lateral Link Replacement — figure 2

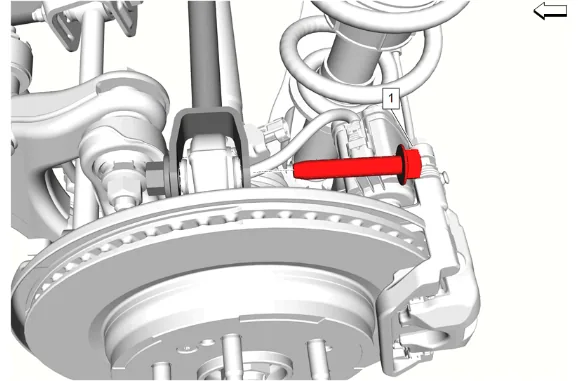

4. Rear Suspension Upper Control Arm Outer Bolt (1) » Remove

Rear Suspension Lateral Link Replacement — figure 3

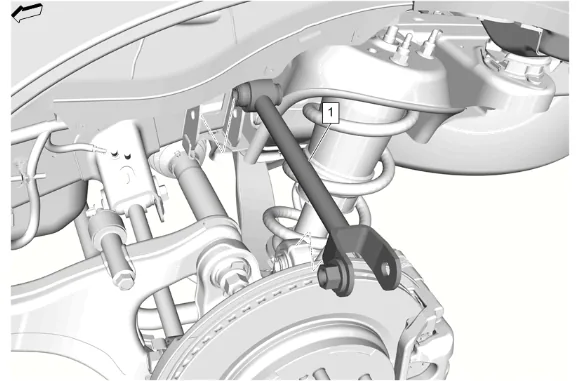

5. Rear Suspension Lateral Link (1) » Remove Installation Procedure

6. Rear Suspension Lateral Link (1) » Install

Caution

Refer to Fastener Caution.

2. Rear Suspension Upper Control Arm Outer Bolt (1) » Install and tighten — Fastener Specifications

3. Rear Suspension Upper Control Arm Inner Bolt (1) » Install

4. Rear Suspension Upper Control Arm Inner Nut (2) » Install and tighten — Fastener Specifications

5. Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
