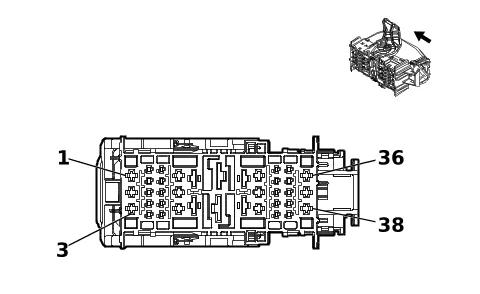

X51R Instrument Panel Wiring Harness Junction Block - Right X1 — figure 1 Connector Part Information
Harness Type: Body Wiring Harness
OEM Connector: 35264615
Service Connector: 84941450
Description: 38-Way F 1.5, 2.8, 6.3 CTS, 9.5 MCON-LL Series( BU)
Terminal Part Information
Terminal Type ID
Terminated Lead
Diagnostic Test Probe
Terminal Removal Tool
I
19332366
J-35616-35 (VT)
J-38125-212
II
19371175
J-35616-2A (GY)
EL-38125-560A
III
84764078
J-35616-42 (RD)
J-38125-215A
IV
84764079
J-35616-22 (RD)
J-38125-11A
V
Not required
J-35616-22 (RD)
No Tool Required
Pin
Size
Color
Circuit
Function
Terminal Type ID
Option
1 - 2
—
—
—
Not Occupied
—
—
3
0.75
RD / GN
1840
Battery Positive Voltage
I
—
4
—
—
—
Not Occupied
—
—
5
0.5
RD / GN
4440
Battery Positive Voltage
II
—
6 Pin
0.5 Size
VT Color
4701 Circuit
Retained Accessory Power Control Function
II Terminal Type ID
— Option
7
0.5
VT
2801
Retained Accessory Power Control
II
—
8
0.5
VT
4701
Retained Accessory Power Control
II
—
9
—
—
—
Not Occupied
—
—
10
0.35
GY / GN
4083
Retained Accessory Power Relay 2 Coil Control
II
—
11 - 12
—
—
—
Not Occupied
—
—
13
0.35
YE / BK
5813
Park Enable Control
II
—
14 - 16
—
—
—
Not Occupied
—
—
17
2.5
RD / YE
2172
12V Regulated Supply Voltage 1
III
—
18
2.5
RD / YE
8140
Battery Positive Voltage
III
—
19
5
RD / YE
1442
Battery Positive Voltage
IV
—
20
10
RD / WH
342
Battery Positive Voltage
V
—
21
2.5
RD / GN
2173
12V Regulated Supply Voltage 2
III
—
22
2.5
RD / WH
8040
Battery Positive Voltage
III
—
23
2.5
RD / BN
4240
Battery Positive Voltage
I
—
24
2.5
RD / BN
4240
Battery Positive Voltage
I
—
25
2.5
RD / GY
3540
Battery Positive Voltage
I
—
26
0.5
RD / BN
3640
Battery Positive Voltage
II
—
27 - 28
—
—
—
Not Occupied
—
—
29
0.5
RD / BU
5240
Battery Positive Voltage
II
—
30
0.5
RD / VT
1940
Battery Positive Voltage
II
—
31
0.35
RD / WH
7240
Battery Positive Voltage
II
—
32
0.5
YE
6812
Out of Park Signal
II
—
33
0.35
GY / GN
4083
Retained Accessory Power Relay 2 Coil Control
II
—
34 - 36
—
—
—
Not Occupied
—
—
37
2.5
RD / GY
©3 2504203
GeBnaetrtaelr yM Pootosritsi.v e A Vllo rltigahgtes reserved.
I
—
Pin
Size
Color
Circuit
Function
Terminal Type ID
Option
38
1.5
VT
1701
Retained Accessory Power Control
I
—
