Engine Front Cover Replacement

Removal Procedure

Oil Filler Cap » Remove

Engine Front Cover Replacement — figure 1

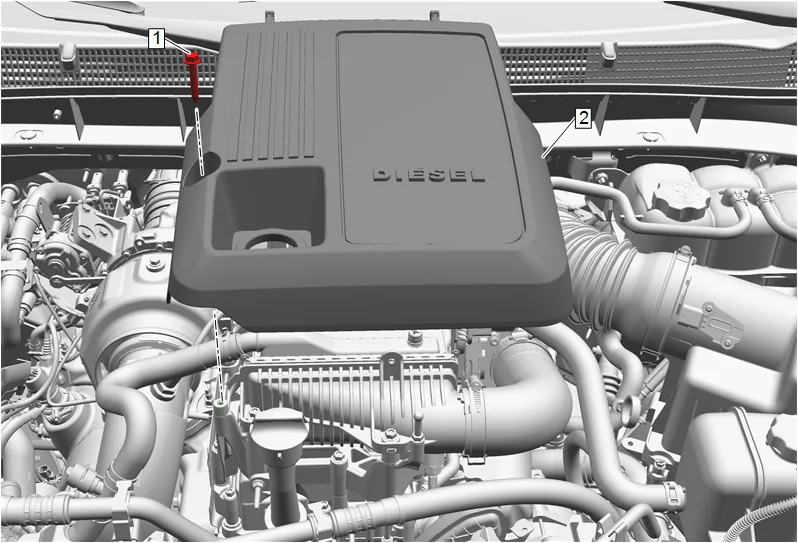

Intake Manifold Cover Bolt (1) » Remove
Intake Manifold Cover (2) » Remove
Install the oil filler cap after removal of the intake manifold cover to prevent debris from falling into the engine.

Engine Front Cover Replacement — figure 2

{ If equipped } Hood Latch Actuator Bolt (1) » Remove [2x]
{ If equipped } Hood Secondary Latch Release Handle (2) » Remove

Engine Front Cover Replacement — figure 3

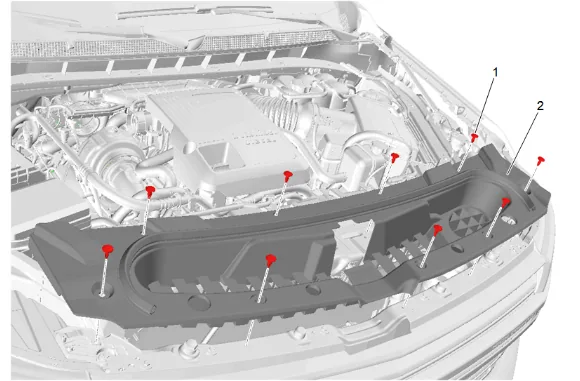

Intake Air Baffle Retainer (1) » Remove [9x]
Intake Air Splash Shield (2) » Remove

Engine Front Cover Replacement — figure 4

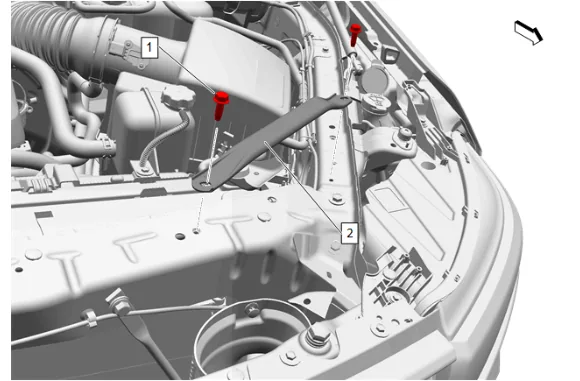

Front End Sheet Metal Diagonal Brace Bolt - Left Side and Right Side (1) » Remove [4x]
Front End Sheet Metal Diagonal Brace - Left Side and Right Side (2) » Remove [2x]

Engine Front Cover Replacement — figure 5

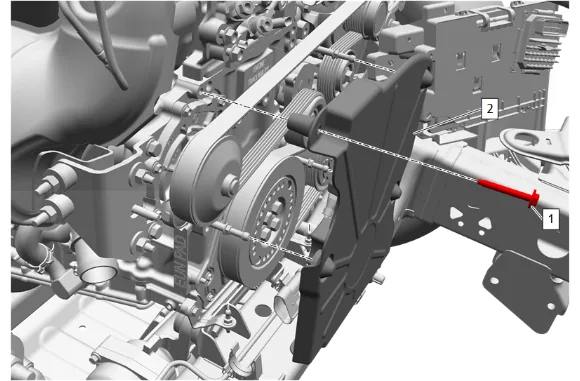

Engine Front Cover Bolt (1) » Remove
Pull forward and upward on the engine front cover (2) to release the 5 retaining grommets from the ball studs.
Raise and support the vehicle. Lifting and Jacking the Vehicle

Engine Front Cover Replacement — figure 6

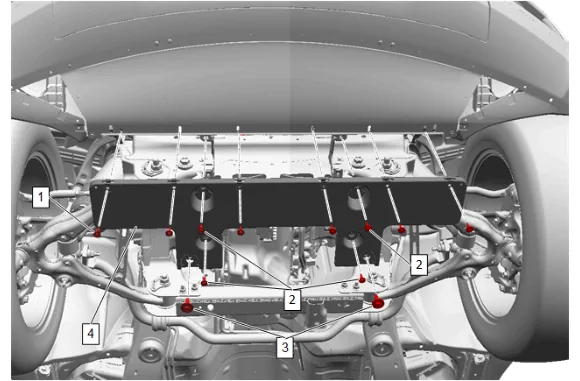

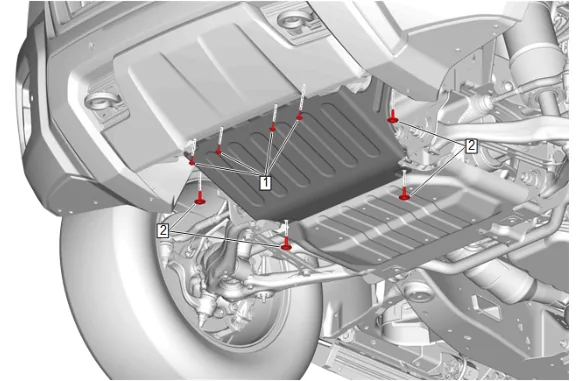

{with RC1} Remove the underbody splash shield. 14.1. Front Bumper Fascia Skid Plate Bolt (1) » Remove [4x] 14.2. Underbody Splash Shield Bolt (2) » Remove [4x]

Engine Front Cover Replacement — figure 7

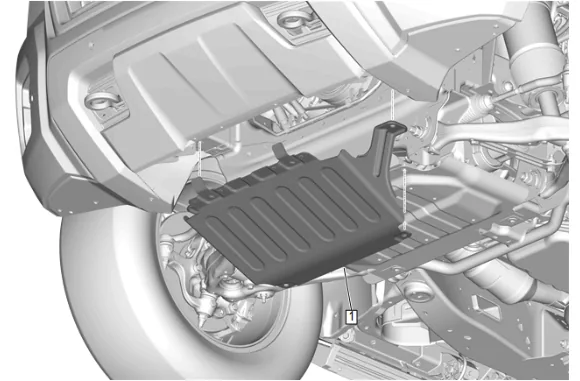

14.3. Underbody Splash Shield (1) » Remove

Engine Front Cover Replacement — figure 8

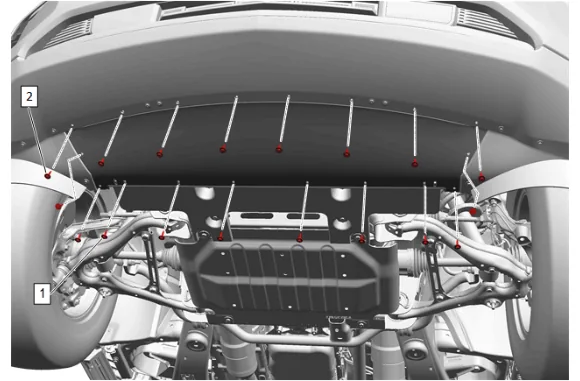

{without RC1} Remove the front bumper fascia extension. 15.1. Front Bumper Fascia Air Deflector Bolt (1) » Remove [10x] 15.2. Front Bumper Fascia Extension Bolt (2) » Remove [8x]

Engine Front Cover Replacement — figure 9

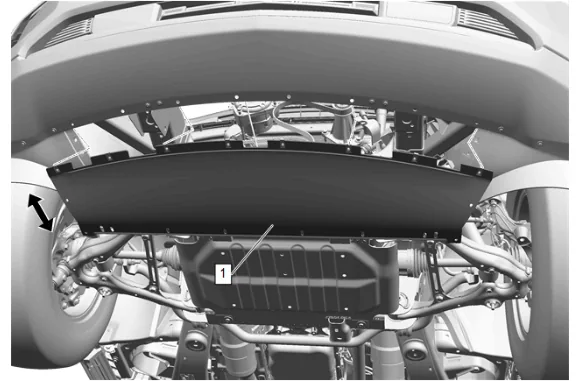

15.3. Pull the front bumper fascia extension (1) rearward and down from the front bumper fascia.

Engine Front Cover Replacement — figure 10

Engine Front Cover Replacement — figure 11

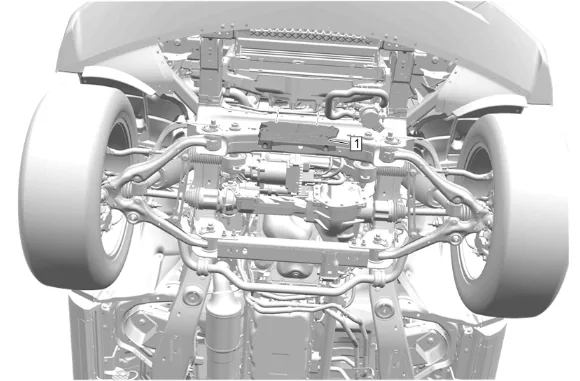

Remove the engine front cover (1) from the bottom of the vehicle. Installation Procedure
Install the engine front cover (1) from the bottom of the vehicle.
{without RC1} Install the front bumper fascia extension.

2.4. Front Bumper Fascia Extension (1) » Install

2.5. Front Bumper Fascia Extension Bolt (2) » Install and tighten [8x] — Fastener Specifications 2.6. Front Bumper Fascia Air Deflector Bolt (1) » Install and tighten [10x] — Fastener Specifications

{with RC1} Install the underbody splash shield. 3.1. Underbody Splash Shield (1) » Install

3.2. Underbody Splash Shield Bolt (2) » Install and tighten[4x] — Fastener Specifications 3.3. Front Bumper Fascia Skid Plate Bolt (1) » Install and tighten[4x] — Fastener Specifications 4. Lower the vehicle.

Push down and rearward on the engine front cover (2) to engage the 5 retaining grommets to the ball studs.
Engine Front Cover Bolt (1) » Install and tighten — Fastener Specifications

Front End Sheet Metal Diagonal Brace - Left Side and Right Side (2) » Install [2x]
If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps: 8.1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth. 8.2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive. 8.3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers 8.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
Front End Sheet Metal Diagonal Brace Bolt - Left Side and Right Side (1) » Install and tighten [4x] — Fastener Specifications
Intake Air Splash Shield (2) » Install
Intake Air Baffle Retainer (1) » Install [9x]
{ If equipped } Hood Secondary Latch Release Handle (2) » Install
{ If equipped } Hood Latch Actuator Bolt (1) » Install and tighten [2x] — Fastener Specifications
Oil Filler Cap » Remove
Intake Manifold Cover (2) » Install
Intake Manifold Cover Bolt (1) » Install and tighten — Fastener Specifications
Oil Filler Cap » Install
