Heater and Air Conditioning Evaporator and Blower Upper Case Replacement (C69)

Heater and Air Conditioning Evaporator and Blower Upper Case Replacement (C69) Single Use Fasteners and Components Air Conditioning Evaporator Thermal Expansion Valve Seal - Large Air Conditioning Evaporator Thermal Expansion Valve Seal - Small Removal Procedure

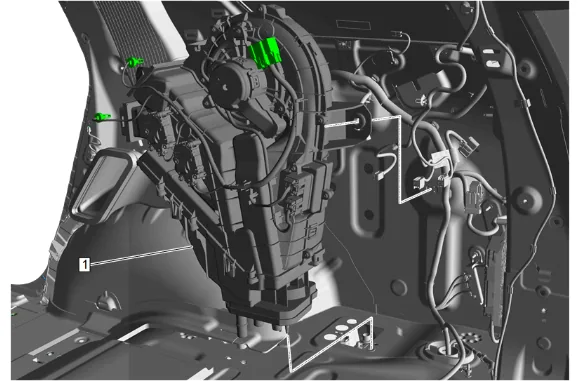

Heater and Air Conditioning Evaporator and Blower Upper Case Replacement (C69) — figure 1
Heater and Air Conditioning Evaporator and Blower Upper Case Replacement (C69) — figure 1
  1. Auxiliary Air Conditioning Evaporator and Blower Module (1) » Remove — Auxiliary Air Conditioning Evaporator and Blower Module Assembly Removal and Installation

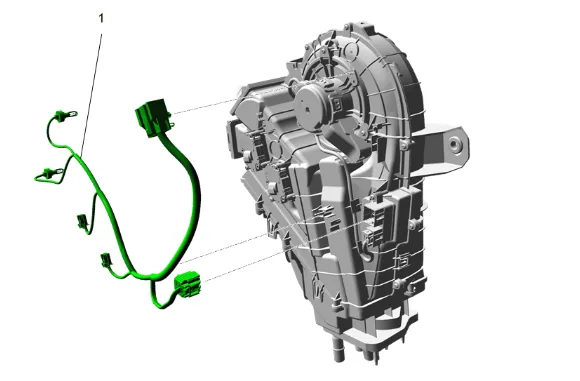

Heater and Air Conditioning Evaporator and Blower Upper Case Replacement (C69) — figure 2
Heater and Air Conditioning Evaporator and Blower Upper Case Replacement (C69) — figure 2
  1. Auxiliary Heater and Air Conditioning Wiring Harness (1) » Remove
  2. Disconnect the electrical connector.

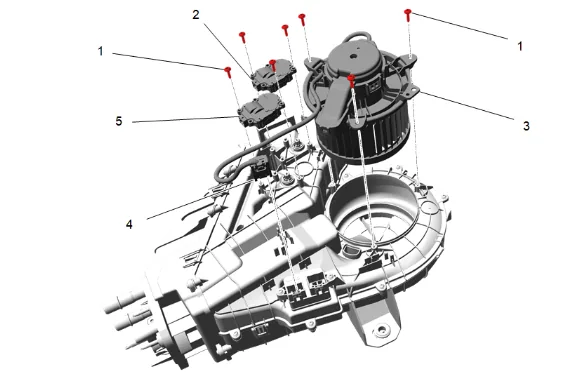

Heater and Air Conditioning Evaporator and Blower Upper Case Replacement (C69) — figure 3
Heater and Air Conditioning Evaporator and Blower Upper Case Replacement (C69) — figure 3
  1. Auxiliary Air Conditioning Evaporator and Blower Case Bolt (1) » Remove [7x]
  2. Rear Programmable Mode Valve Actuator (2) » Remove
  3. Auxiliary Blower Motor (3) » Remove
  4. Disconnect the electrical connector. (4)
  5. Rear Programmable Temperature Valve Actuator (5) » Remove

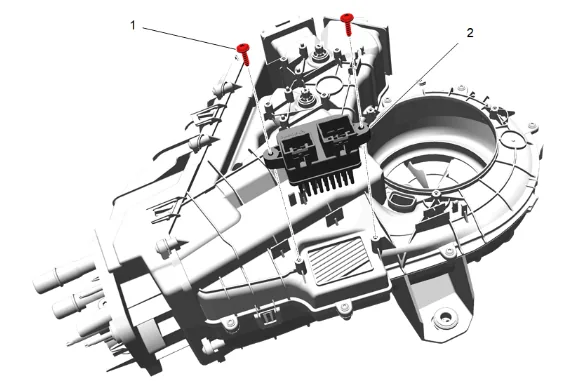

Heater and Air Conditioning Evaporator and Blower Upper Case Replacement (C69) — figure 4
Heater and Air Conditioning Evaporator and Blower Upper Case Replacement (C69) — figure 4
  1. Auxiliary Air Conditioning Evaporator and Blower Case Bolt (1) » Remove [2x]
  2. Blower Motor Control Module (2) » Remove
Heater and Air Conditioning Evaporator and Blower Upper Case Replacement (C69) — figure 5
Heater and Air Conditioning Evaporator and Blower Upper Case Replacement (C69) — figure 5
  1. Auxiliary Air Conditioning Evaporator and Blower Case Bolt (1) » Remove [8x]
Heater and Air Conditioning Evaporator and Blower Upper Case Replacement (C69) — figure 6
Heater and Air Conditioning Evaporator and Blower Upper Case Replacement (C69) — figure 6

  1. Auxiliary Heater Air Outlet Duct Seal (1) » Remove

  2. Air Distributor Seal (2) » Remove

  3. Heater and Air Conditioning Evaporator and Blower Upper Case (3) @ Heater and Air Conditioning Evaporator and Blower Lower Case (4) » Remove Installation Procedure

  4. Heater and Air Conditioning Evaporator and Blower Upper Case (3) @ Heater and Air Conditioning Evaporator and Blower Lower Case (4) » Install

  5. Air Distributor Seal (2) » Install

  6. Auxiliary Heater Air Outlet Duct Seal (1) » Install

  1. Auxiliary Air Conditioning Evaporator and Blower Case Bolt (1) » Install and tighten [8x] — Fastener Specifications

  2. Blower Motor Control Module (2) » Install

  3. Auxiliary Air Conditioning Evaporator and Blower Case Bolt (1) » Install and tighten [2x] — Fastener Specifications

  4. Rear Programmable Temperature Valve Actuator (5) » Install

  5. Connect the electrical connector. (4)

  6. Auxiliary Blower Motor (3) » Install

  7. Rear Programmable Mode Valve Actuator (2) » Install

  8. Auxiliary Air Conditioning Evaporator and Blower Case Bolt (1) » Install and tighten [7x] — Fastener Specifications

  9. Auxiliary Heater and Air Conditioning Wiring Harness (1) » Install

  10. Disconnect the electrical connector.

  11. Auxiliary Air Conditioning Evaporator and Blower Module (1) » Install — Auxiliary Air Conditioning Evaporator and Blower Module Assembly Removal and Installation
