Front Floor Console Armrest Latch Replacement (DCK)

Removal Procedure

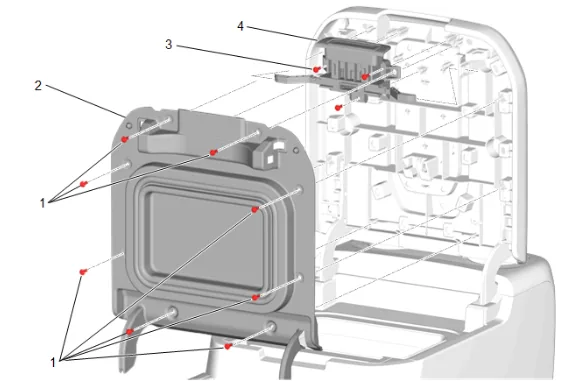

Front Floor Console Armrest Latch Replacement (DCK) — figure 1
Front Floor Console Armrest Latch Replacement (DCK) — figure 1

  1. Front Floor Console Armrest Bolt (1) » Remove [8x]

  2. Hold the latch release button in.

  3. Front Floor Console Armrest Hinge Cover (2) » Remove

  4. Front Floor Console Armrest Bolt (3) » Remove [3x]

  5. Depress the latch rod.

  6. Front Floor Console Armrest Latch (4) » Remove Installation Procedure

  7. Depress the latch rod.

  8. Front Floor Console Armrest Latch (4) » Install

  1. Front Floor Console Armrest Bolt (3) » Install and tighten [3x] — Fastener Specifications
  2. Hold the latch release button in.
  3. Front Floor Console Armrest Hinge Cover (2) » Install
  4. Front Floor Console Armrest Bolt (1) » Install and tighten [8x] — Fastener Specifications
