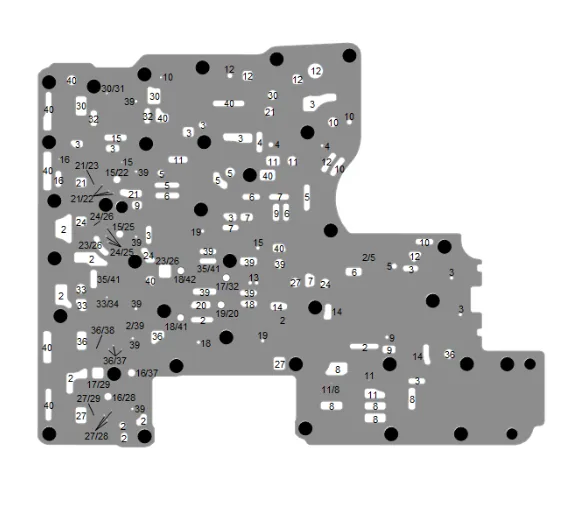

Control Valve Body Spacer Plate – Control Valve Solenoid Body Assembly Side

Control Valve Body Spacer Plate – Control Valve Solenoid Body Assembly Side — figure 1

(2) Line (3) Secondary Line (4) Decrease (5) Converter Feed (6) TCC Release (7) TCC Apply (8) Cooler Feed (9) Lube (10) VFS-TCC (11) Converter Return (12) VFS Line (13) Drive (14) Reverse (15) Feed Limit – Low (16) Feed Limit – High (17) Drive Default (18) Reverse Default (19) ON/OFF Signal (20) 1-2-3-4-6-7-8-10-Reverse Clutch Feedback (21) 1-2-3-4-5-6-Reverse Clutch (22) 1-2-3-4-5-6-Reverse Clutch Feedback (23) 1-2-3-4-5-6-Reverse Clutch Exhaust (24) 1-2-8-9-10-Reverse Clutch (25) 1-2-8-9-10-Reverse Clutch Feedback (26) 1-2-8-9-10-Reverse Clutch Exhaust (27) 2-3-4-5-7-9-10 Clutch (28) 2-3-4-5-7-9-10 Clutch Feedback (29) 2-4-5-7-9-10 Clutch Exhaust (30) 1-2-3-4-6-7-8-10-Reverse Clutch (31) 1-2-3-4-6-7-8-10-Reverse Clutch Feedback (32) 1-2-3-4-6-7-8-10-Reverse Clutch Exhaust (33) 1-3-5-6-7-8-9 Clutch (34) 1-3-5-6-7-8-9 Clutch Feedback (35) 1-3-5-6-7-8-9 Clutch Exhaust (36) 4-5-6-7-8-9-10-Reverse Clutch (37) 4-5-6-7-8-9-10-Reverse Clutch Feedback (38) 4-5-6-7-8-9-10-Reverse Clutch Exhaust (39) Exhaust Backfill (40) Exhaust (41) 1-3-5-6-7-8-9/1-2-3-4-6-7-8-10-Reverse Clutch Exhaust (42) 1-2-3-4-5-6-Reverse/1-2-8-9-10 Clutch Exhaust
