Tahoe / Yukon Service Manual

Rear Body Structure Stop Lamp Replacement

Removal Procedure

  1. Open the rear compartment lid.
Rear Body Structure Stop Lamp Replacement — figure 1
Rear Body Structure Stop Lamp Replacement — figure 1
  1. Using the appropriate tool, release the tabs on the back body opening side center gutter.
Rear Body Structure Stop Lamp Replacement — figure 2
Rear Body Structure Stop Lamp Replacement — figure 2

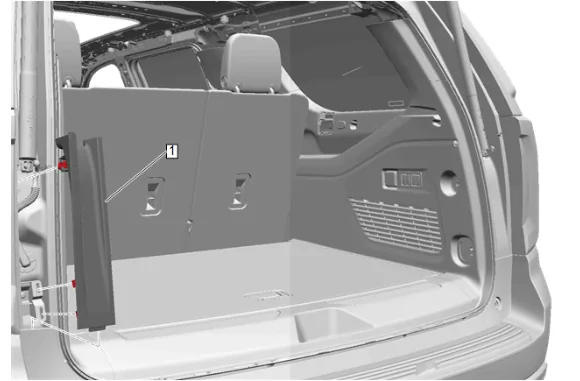

  1. Release the back body opening side lower gutter retainers and remove the back body opening side lower gutter (1).
Rear Body Structure Stop Lamp Replacement — figure 3
Rear Body Structure Stop Lamp Replacement — figure 3

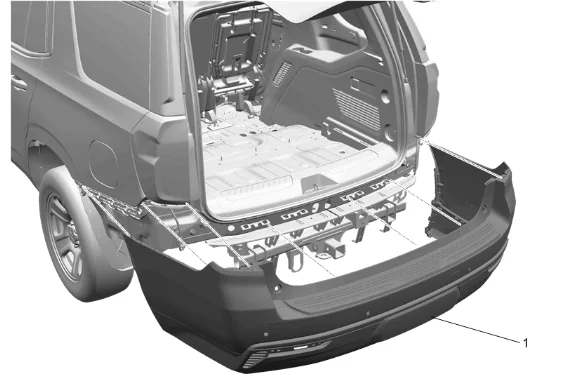

  1. Rear Bumper Fascia (1) » Remove — Rear Bumper Fascia Removal and Installation
Rear Body Structure Stop Lamp Replacement — figure 4
Rear Body Structure Stop Lamp Replacement — figure 4

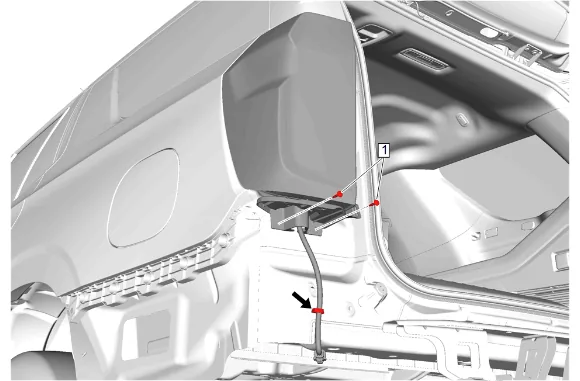

  1. Rear Body Structure Stop Lamp Bolt (1) » Remove [2x]
  2. Disconnect the electrical connector.
  3. Release the retaining tab.
Rear Body Structure Stop Lamp Replacement — figure 5
Rear Body Structure Stop Lamp Replacement — figure 5

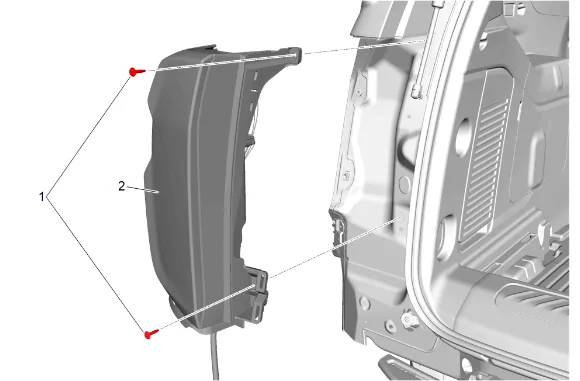

  1. Rear Body Structure Stop Lamp Bolt (1) » Remove [2x]
  2. Rear Body Structure Stop Lamp (2) » Remove Installation Procedure
Rear Body Structure Stop Lamp Replacement — figure 6
Rear Body Structure Stop Lamp Replacement — figure 6

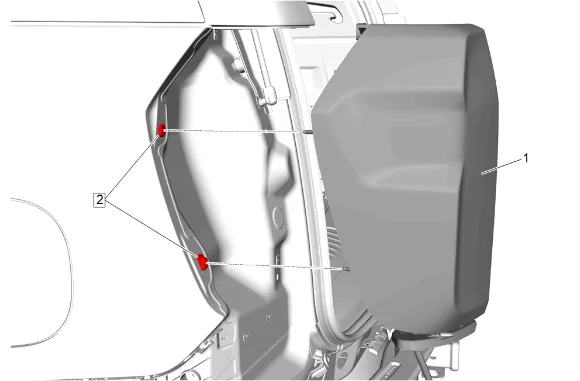

  1. Ensure the rear body structure lamp (1) is properly aligned with the tail lamp retainers (2).

  2. Rear Body Structure Stop Lamp (2) » Install

  1. Rear Body Structure Stop Lamp Bolt (1) » Install and tighten [2x] — Fastener Specifications

  2. Secure the retaining tab.

  3. Connect the electrical connector.

  4. Rear Body Structure Stop Lamp Bolt (1) » Install and tighten [2x] — Fastener Specifications

  5. Rear Bumper Fascia (1) » Install — Rear Bumper Fascia Removal and Installation

  1. Back Body Opening Side Lower Gutter (1) » Install
  1. Back Body Opening Side Center Gutter » Install
  2. Close the rear compartment lid.
