Electronic Suspension Position Sensor Link Ball Stud Replacement

Electronic Suspension Position Sensor Link Ball Stud Replacement Removal Procedure

1. Raise and support the vehicle. Lifting and Jacking the Vehicle

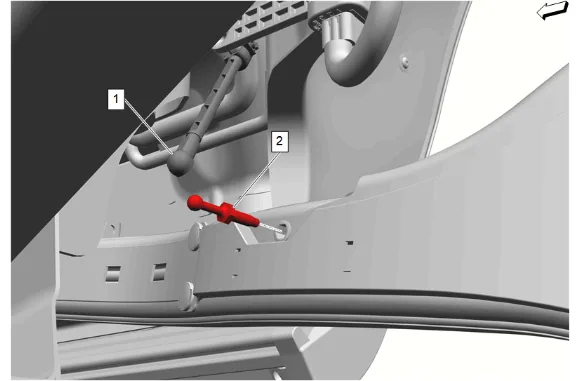

Electronic Suspension Position Sensor Link Ball Stud Replacement — figure 1

2. Remove the electronic suspension position sensor link (1) from the electronic suspension position sensor link ball stud (2).
3. Electronic Suspension Position Sensor Link Ball Stud (2) » Remove Installation Procedure

Caution

Refer to Fastener Caution.

1. Electronic Suspension Position Sensor Link Ball Stud (2) » Install and tighten — Fastener Specifications
2. Install the electronic suspension position sensor link (1) on the electronic suspension position sensor link ball stud (2).
3. Remove the support and lower the vehicle.
