Charge Air Cooler Coolant Hose Replacement (LM2)

Removal Procedure

1. Drain the charge air cooling system. Charge Air Cooling System Draining and Filling

Charge Air Cooler Coolant Hose Replacement (LM2) — figure 1

2. Hood Latch Actuator Bolt (1) » Remove [2x]
3. Hood Secondary Latch Release Handle (2) » Remove

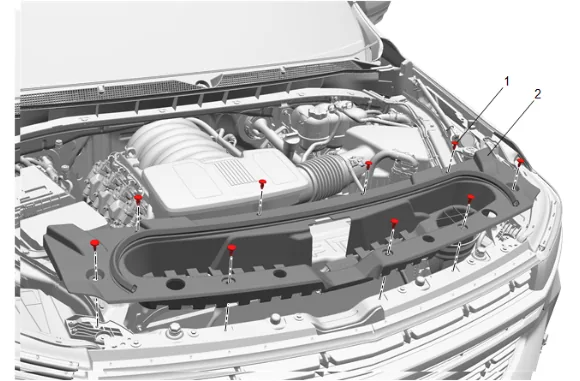

Charge Air Cooler Coolant Hose Replacement (LM2) — figure 2

4. Intake Air Baffle Retainer (1) » Remove [9x]
5. Intake Air Splash Shield (2) » Remove
6. Oil Filler Cap » Remove

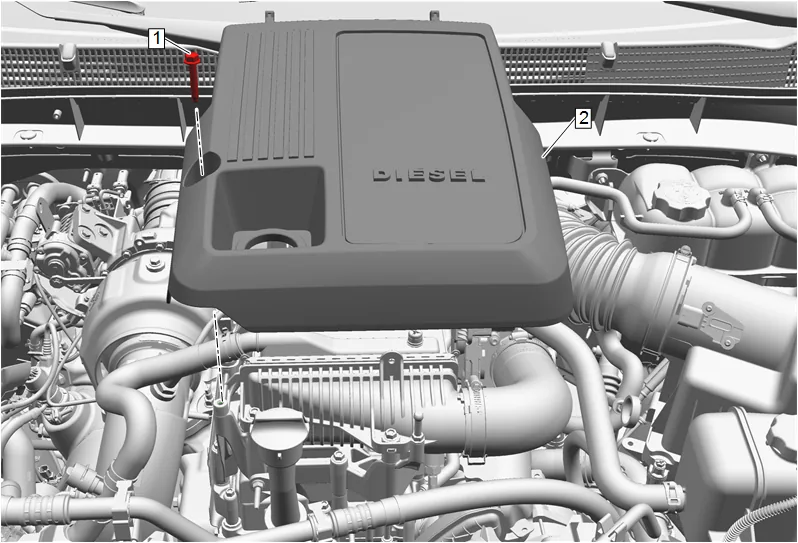

Charge Air Cooler Coolant Hose Replacement (LM2) — figure 3

7. Intake Manifold Cover Bolt (1) » Remove
8. Intake Manifold Cover (2) » Remove
9. Install the oil filler cap after removal of the intake manifold cover to prevent debris from falling into the engine.

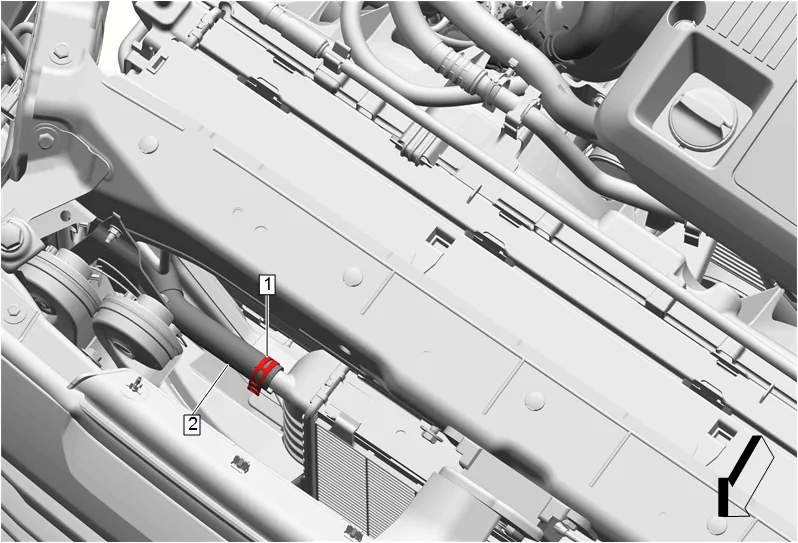

Charge Air Cooler Coolant Hose Replacement (LM2) — figure 4

10. Charge Air Cooler Coolant Hose Clamp (1) » Disengage — Hose Clamp Replacement Guidelines - Spring Type
11. Charge Air Cooler Coolant Hose (2) @ Engine Auxiliary Radiator » Remove

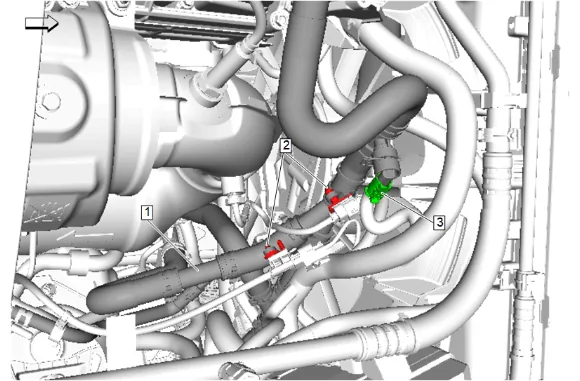

Charge Air Cooler Coolant Hose Replacement (LM2) — figure 5

12. Engine Coolant Temperature Sensor Electrical Connector (3) @ Charge Air Cooler Coolant Hose (1) » Disconnect
13. Engine Wiring Harness Retainer (2) @ Charge Air Cooler Coolant Hose (1) » Remove [2x]

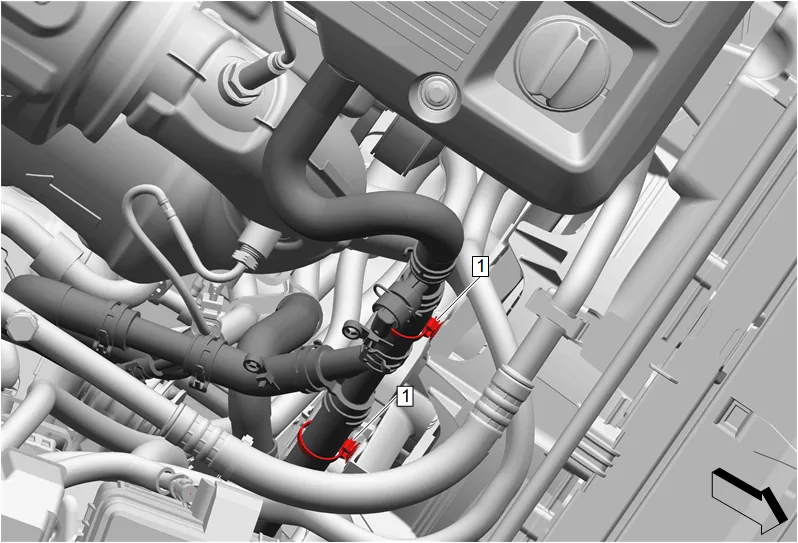

Charge Air Cooler Coolant Hose Replacement (LM2) — figure 6

14. Charge Air Cooler Coolant Hose Clip (1) @ Engine Coolant Fan Rear Shroud » Remove [2x]

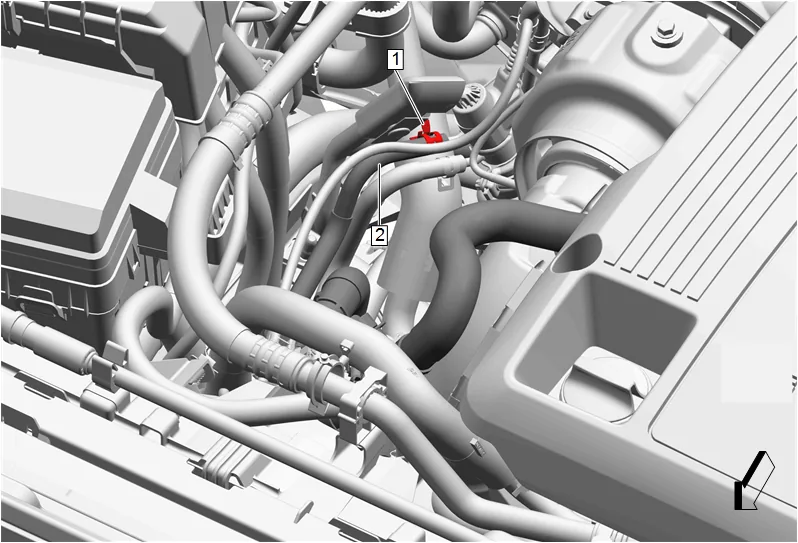

Charge Air Cooler Coolant Hose Replacement (LM2) — figure 7

15. Charge Air Cooler Coolant Hose Connector Clamp (1) » Disengage — Hose Clamp Replacement Guidelines - Spring Type
16. Charge Air Cooler Coolant Hose (2) @ Reductant Fluid Injector » Remove

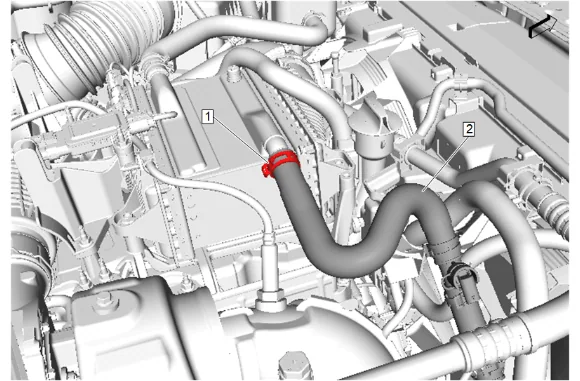

Charge Air Cooler Coolant Hose Replacement (LM2) — figure 8

17. Charge Air Cooler Coolant Hose Clamp (1) » Disengage — Hose Clamp Replacement Guidelines - Spring Type
18. Charge Air Cooler Coolant Hose (2) @ Charge Air Cooler » Remove
19. Remove the right front tire and wheel assembly. Tire and Wheel Removal and Installation

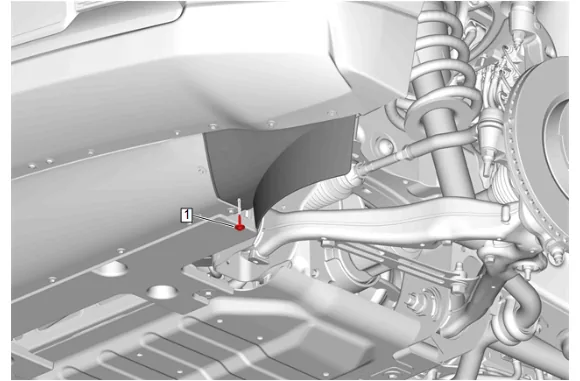

Charge Air Cooler Coolant Hose Replacement (LM2) — figure 9

Note

Left side shown, right side similar.

20. { If equipped } Front Tire Front Air Deflector Bolt - Right Side (1) » Remove

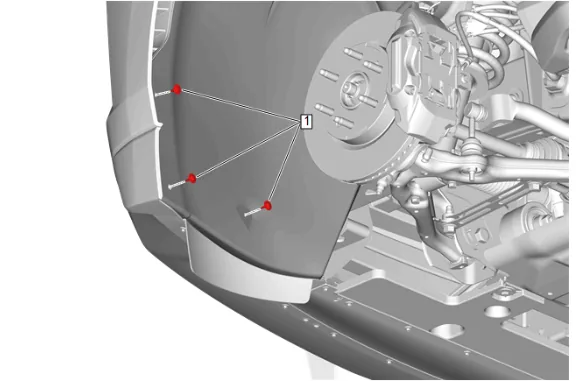

Charge Air Cooler Coolant Hose Replacement (LM2) — figure 10

Note

Left side shown, right side similar.

21. Front Wheelhouse Liner Bolt - Right Side (1) » Remove [3x]

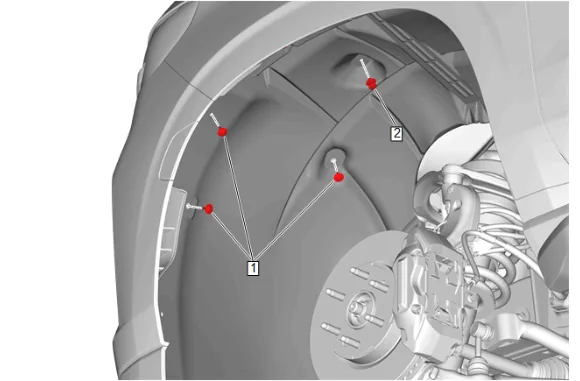

Charge Air Cooler Coolant Hose Replacement (LM2) — figure 11

Note

Left side shown, right side similar.

22. Front Wheelhouse Liner Bolt - Right Side (1) » Remove [3x]
23. Front Wheelhouse Liner Retainer - Right Side (2) » Remove
24. Reposition the front portion of the right front wheelhouse liner toward the rear of the vehicle.

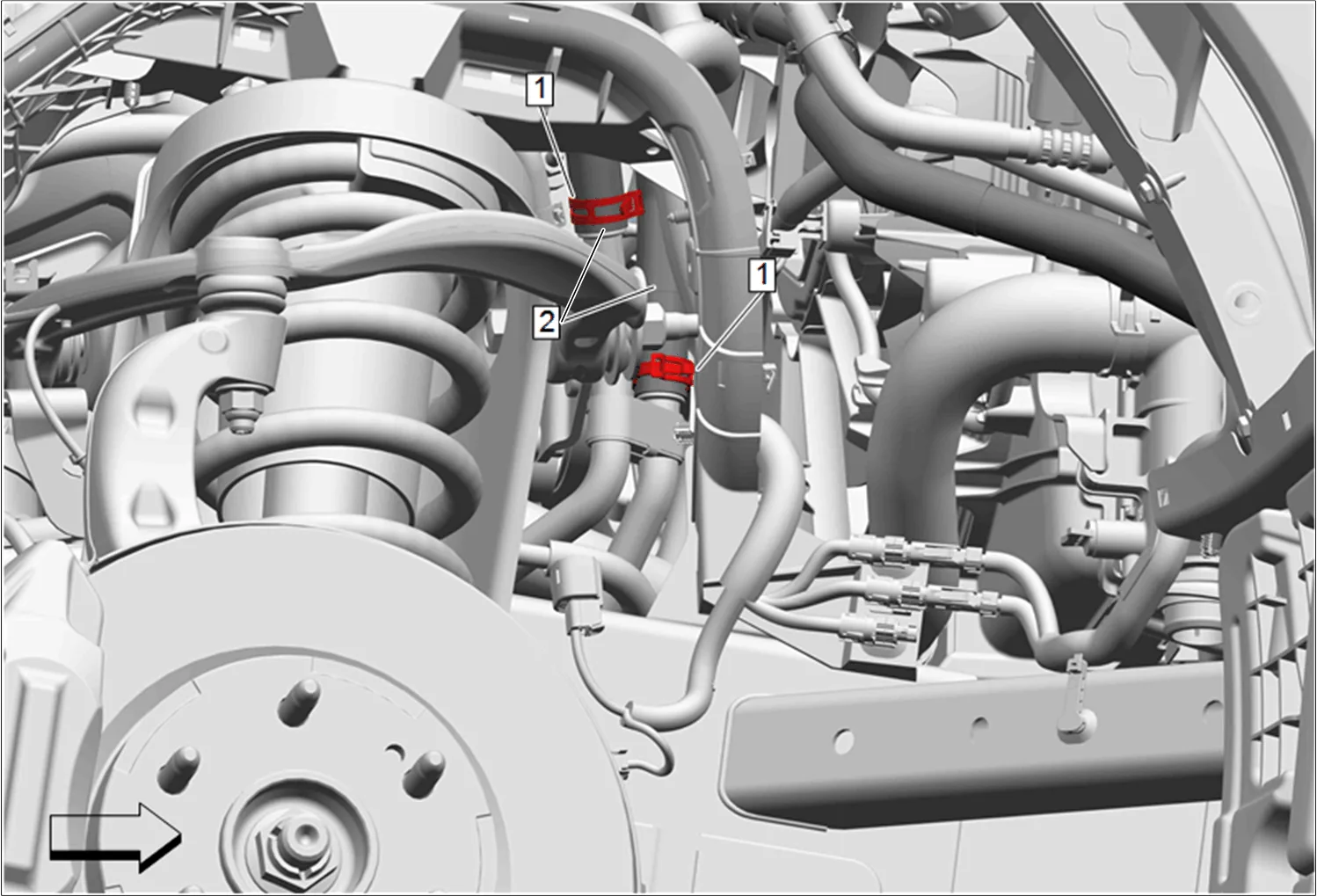

Charge Air Cooler Coolant Hose Replacement (LM2) — figure 12

25. Charge Air Cooler Coolant Hose Clamp (1) » Disengage [2x] — Hose Clamp Replacement Guidelines - Spring Type

26. Charge Air Cooler Coolant Hose (2) @ Fuel Heater Inlet and Outlet Pipe » Remove

27. Charge Air Cooler Coolant Hose (2) » Remove Installation Procedure

28. Charge Air Cooler Coolant Hose (2) @ Fuel Heater Inlet and Outlet Pipe » Install

29. Charge Air Cooler Coolant Hose Clamp (1) » Engage [2x] — Hose Clamp Replacement Guidelines - Spring Type

30. Move the front portion of the right front wheelhouse liner into position.

Note

Left side shown, right side similar.

4. Front Wheelhouse Liner Retainer - Right Side (2) » Install
5. Front Wheelhouse Liner Bolt - Right Side (1) » Install and tighten [3x] — Fastener Specifications

Note

Left side shown, right side similar.

6. Front Wheelhouse Liner Bolt - Right Side (1) » Install and tighten [3x] — Fastener Specifications

Note

Left side shown, right side similar.

7. { If equipped } Front Tire Front Air Deflector Bolt - Right Side (1) » Install and tighten — Fastener Specifications

8. Install the right front tire and wheel assembly. Tire and Wheel Removal and Installation

9. Charge Air Cooler Coolant Hose (2) @ Charge Air Cooler » Install

10. Charge Air Cooler Coolant Hose Clamp (1) » Engage — Hose Clamp Replacement Guidelines - Spring Type

11. Charge Air Cooler Coolant Hose (2) @ Reductant Fluid Injector » Install

12. Charge Air Cooler Coolant Hose Connector Clamp (1) » Engage — Hose Clamp Replacement Guidelines - Spring Type

13. Charge Air Cooler Coolant Hose Clip (1) @ Engine Coolant Fan Rear Shroud » Install [2x]

14. Engine Wiring Harness Retainer (2) @ Charge Air Cooler Coolant Hose (1) » Install [2x]

15. Engine Coolant Temperature Sensor Electrical Connector (3) @ Charge Air Cooler Coolant Hose (1) » Connect

16. Charge Air Cooler Coolant Hose (2) @ Engine Auxiliary Radiator » Install

17. Charge Air Cooler Coolant Hose Clamp (1) » Engage — Hose Clamp Replacement Guidelines - Spring Type

18. Oil Filler Cap » Remove

19. Intake Manifold Cover (2) » Install

20. Intake Manifold Cover Bolt (1) » Install and tighten — Fastener Specifications

21. Oil Filler Cap » Install

22. Intake Air Splash Shield (2) » Install

23. Intake Air Baffle Retainer (1) » Install [9x]

24. Hood Secondary Latch Release Handle (2) » Install

25. Hood Latch Actuator Bolt (1) » Install and tighten [2x] — Fastener Specifications

26. Fill the charge air cooling system. Charge Air Cooling System Draining and Filling

27. Start the engine and check for coolant leaks.
