Engine Front Cover Replacement (L87 with RC1)

Single Use Fasteners and Components Accessory Drive Auxiliary Belt Accessory Drive Primary Belt Camshaft Position Actuator Magnet Gasket Camshaft Position Sensor Seal Crankshaft Balancer Bolt Crankshaft Front Oil Seal Engine Oil Cooler Retainer [2x] Oil Filter Water Pump Gasket [2x] Special Tools EN-956-1 Extension Bar EN-28410 Remover EN-41478-A Crankshaft Front Oil Seal Installer EN-41665-A Crankshaft Balancer and Sprocket Installer EN-41816-A Crankshaft Balancer Remover EN-44226-5 Crankshaft Protector EN-51091 Crankshaft Front Oil Seal Installer EN-51096 Rear Main Seal Remover EN-51767-2 Stretchy Belt Installer EN-52287 Balancer Holding Kit GE-23907-1 Slide Hammer with Shaft Equivalent regional tools: Special Tools Removal Procedure

1. Remove the negative battery cable from the battery. Battery Negative Cable Disconnection and Connection

Engine Front Cover Replacement (L87 with RC1) — figure 1

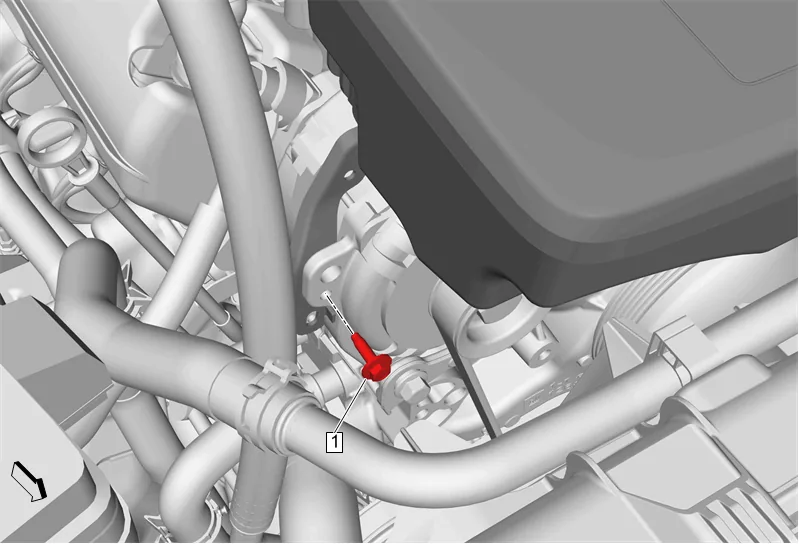

2. Air Cleaner Outlet Duct Bracket Bolt (1) » Remove
3. Remove engine wiring harness from air cleaner outlet duct bracket.

Engine Front Cover Replacement (L87 with RC1) — figure 2

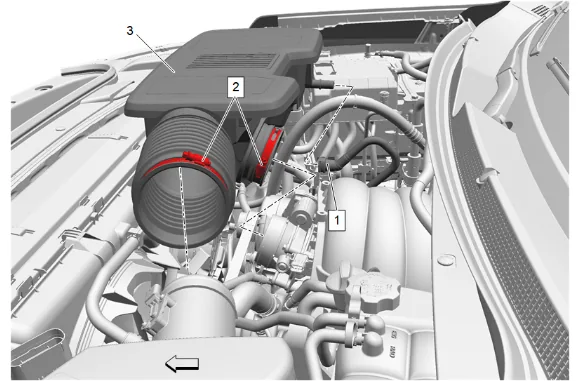

4. Positive Crankcase Ventilation Fresh Air Tube (1) » Disconnect — Plastic Collar Quick Connect Fitting Service
5. Air Cleaner Outlet Duct Clamp (2) » Loosen [2x]
6. Air Cleaner Outlet Duct (3) » Remove

Engine Front Cover Replacement (L87 with RC1) — figure 3

Note

The accessory drive primary belt is not reusable.

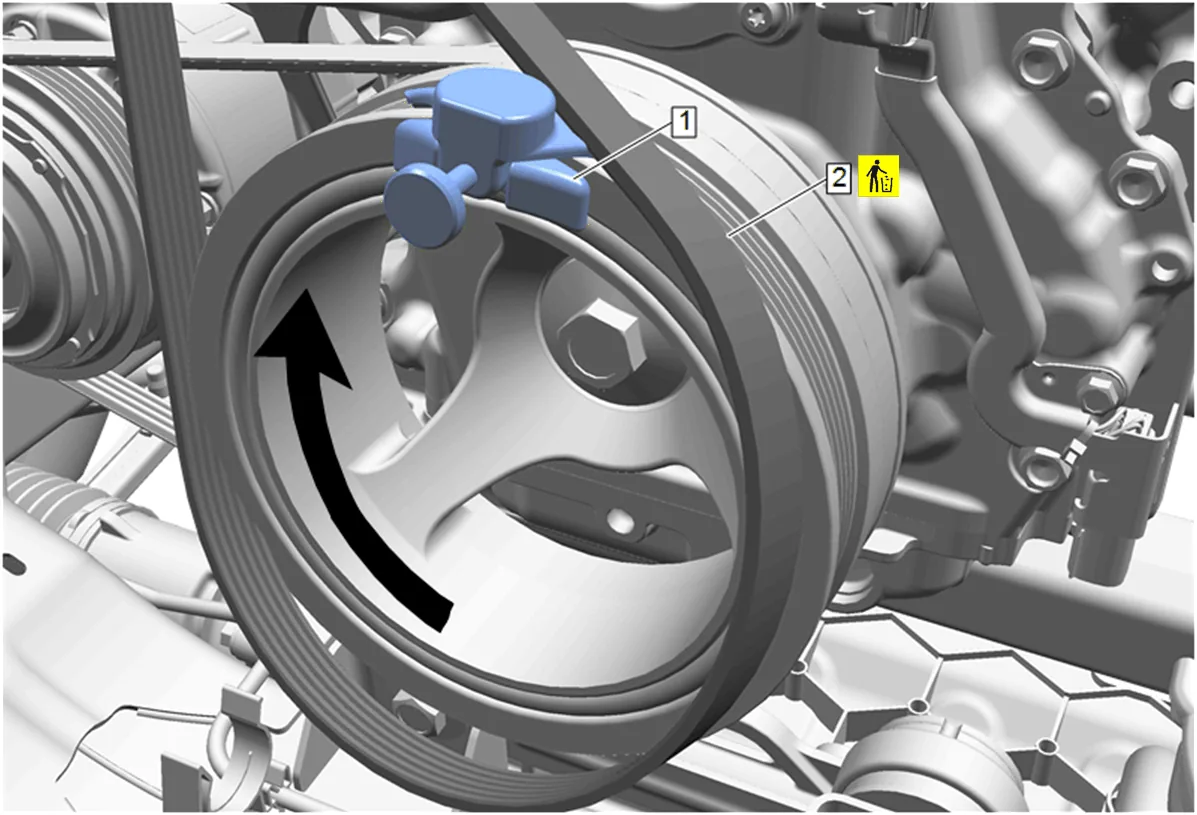

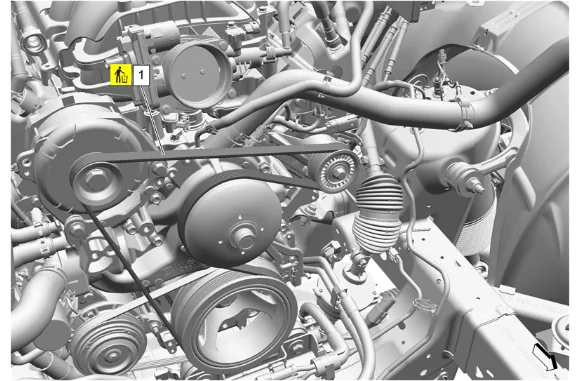

7. Using a suitable tool, cut the accessory drive primary belt (1).
8. Accessory Drive Primary Belt (1) » Remove and DISCARD

Engine Front Cover Replacement (L87 with RC1) — figure 4

Note

The accessory drive auxiliary belt is not reusable.

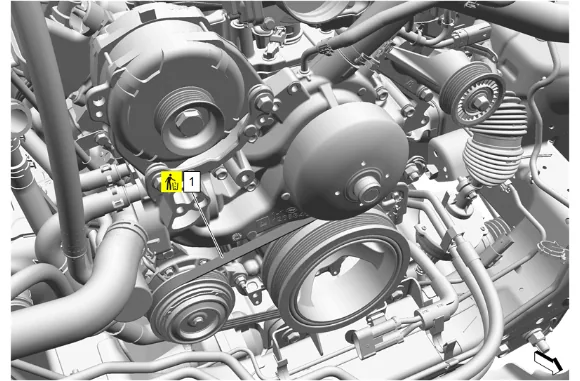

9. Using a suitable tool, cut the accessory drive auxiliary belt (1).
10. Accessory Drive Auxiliary Belt (1) » Remove and DISCARD

Engine Front Cover Replacement (L87 with RC1) — figure 5

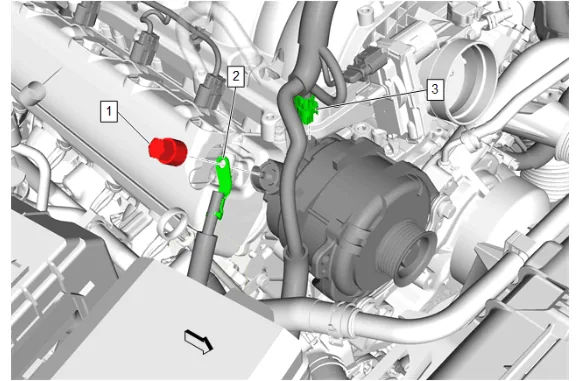

11. Battery Positive Cable Nut (1) » Remove
12. Starter Solenoid Cable (2) » Remove
13. Electrical Connector (3) » Disconnect
14. Raise and support the vehicle. Lifting and Jacking the Vehicle
15. Drain the cooling system. Cooling System Draining and Filling

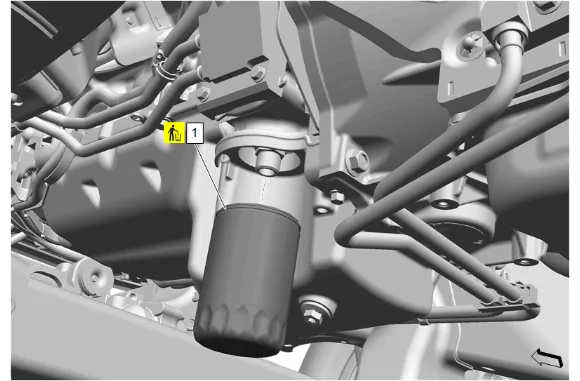

16. Engine Oil and Oil Filter » Remove and DISCARD — Engine Oil and Oil Filter Replacement

Engine Front Cover Replacement (L87 with RC1) — figure 6

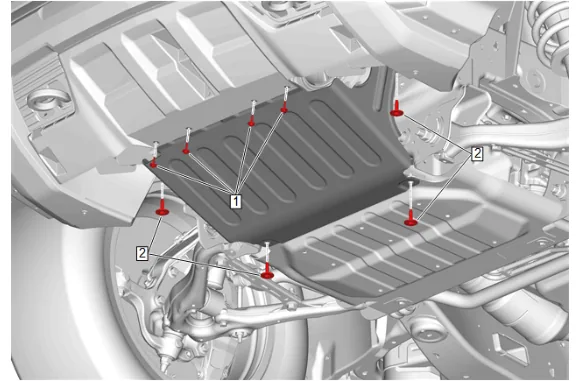

17. Front Bumper Fascia Skid Plate Bolt (1) » Remove [4x]
18. Underbody Splash Shield Bolt (2) » Remove [4x]

Engine Front Cover Replacement (L87 with RC1) — figure 7

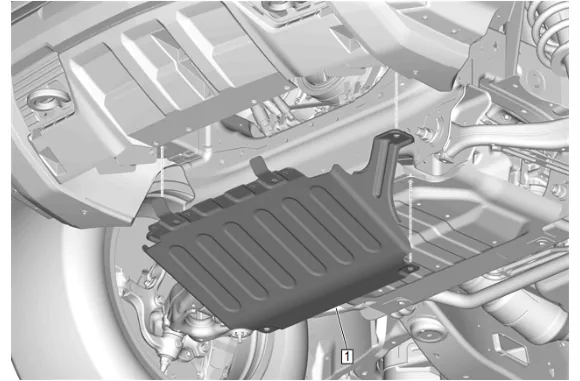

19. Underbody Splash Shield (1) » Remove

Engine Front Cover Replacement (L87 with RC1) — figure 8

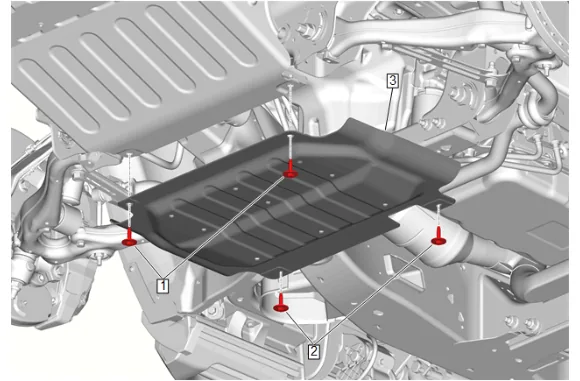

20. Underbody Skid Shield Bolt (2) » Remove [2x]
21. Underbody Skid Shield (3) » Remove

Engine Front Cover Replacement (L87 with RC1) — figure 9

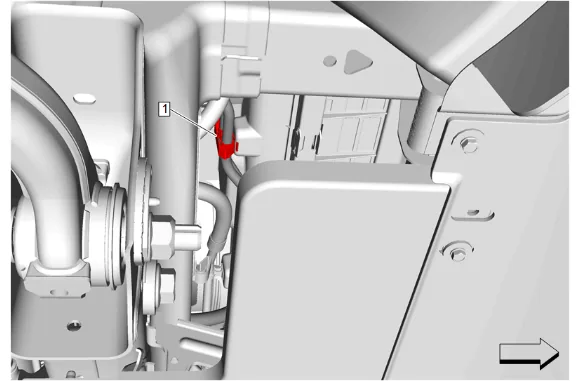

22. Engine Oil Cooler Hose Clip (1) » Release

Engine Front Cover Replacement (L87 with RC1) — figure 10

Note

It is not necessary to recover and recharge the refrigerant to perform this repair.

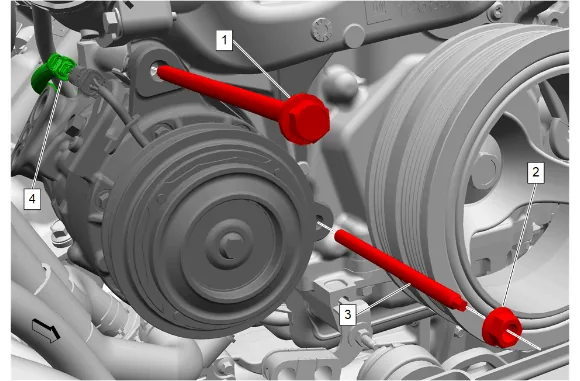

23. Air Conditioning Compressor Bolt (1) » Remove
24. Air Conditioning Compressor Nut (2) » Remove
25. Air Conditioning Compressor Stud (3) » Remove

Engine Front Cover Replacement (L87 with RC1) — figure 11

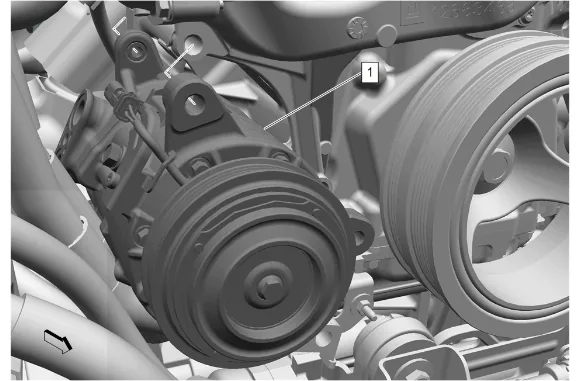

26. Air Conditioning Compressor Assembly (1) » Position aside

Engine Front Cover Replacement (L87 with RC1) — figure 12

Note

The balancer holding kit (4) should be assembled as it is installed on the crankshaft balancer (2). Some components not shown for graphic clarity.

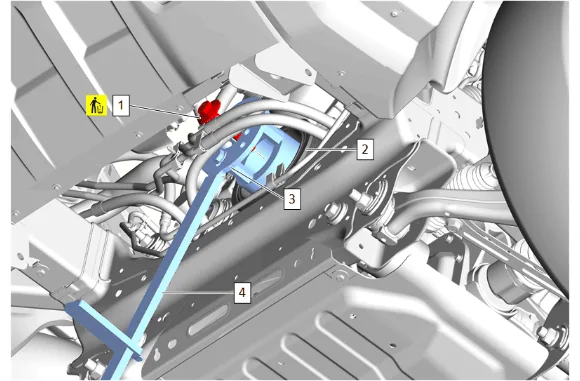

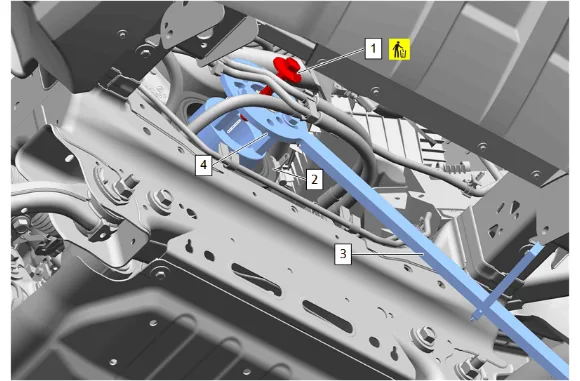

27. Install the EN-52287 Balancer Holding Kit (4) and the EN-956-1 Extension Bar (3) to the crankshaft balancer (2).
28. Hold the EN-52287 Balancer Holding Kit (4) and the EN-956-1 Extension Bar (3) and remove and DISCARD the crankshaft balancer bolt (1).
29. Remove the EN-52287 Balancer Holding Kit (4) and the EN-956-1 Extension Bar (3) from the crankshaft balancer (2).

Engine Front Cover Replacement (L87 with RC1) — figure 13

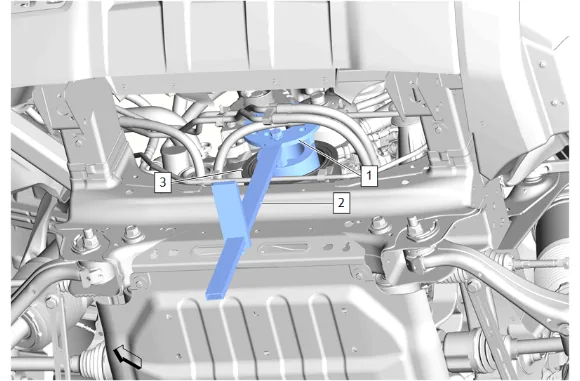

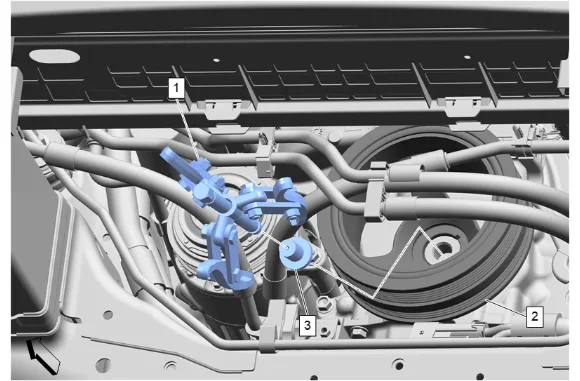

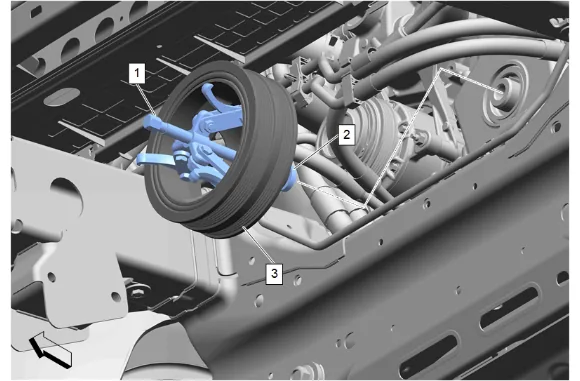

30. Install the EN-41816-A Crankshaft Balancer Remover (1) and the EN-44226-5 Crankshaft Protector (3) to the crankshaft balancer (2).

Engine Front Cover Replacement (L87 with RC1) — figure 14

31. Using the EN-41816-A Crankshaft Balancer Remover (1) and the EN-44226-5 Crankshaft Protector (2) remove crankshaft balancer (3) from the crankshaft.
32. Remove the EN-41816-A Crankshaft Balancer Remover (1) and the EN-44226-5 Crankshaft Protector (2) from the crankshaft balancer (3).
33. Remove the support and lower the vehicle.

Engine Front Cover Replacement (L87 with RC1) — figure 15

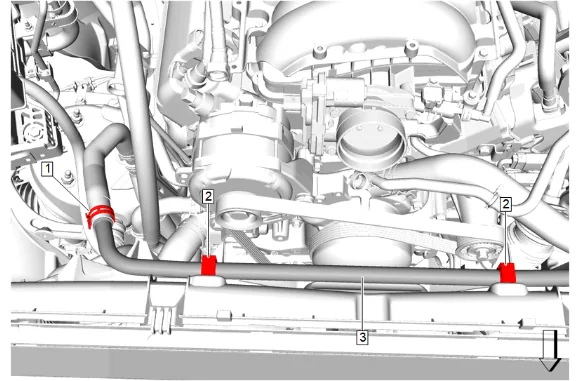

34. Radiator Surge Tank Outlet Hose Clip (2) » Remove [2x]
35. Radiator Surge Tank Outlet Hose (3) » Position aside

Engine Front Cover Replacement (L87 with RC1) — figure 16

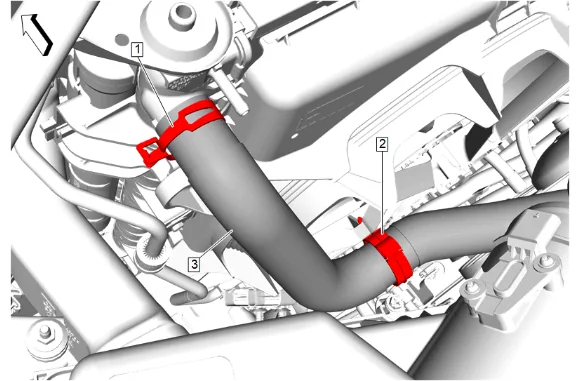

36. Radiator Inlet Hose Clip (2) » Remove
37. Radiator Inlet Hose Clamp (1) » Disengage — Hose Clamp Replacement Guidelines - Spring Type
38. Radiator Inlet Hose (3) @ Engine Radiator » Remove and position aside

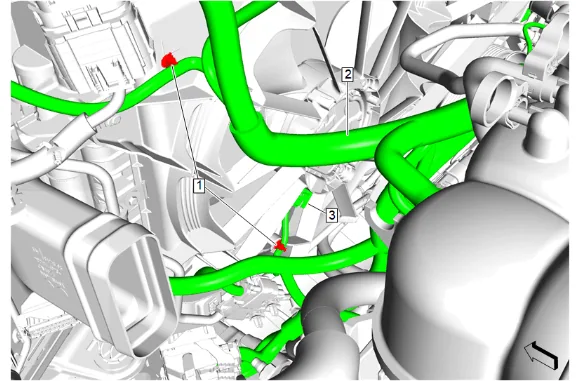

Engine Front Cover Replacement (L87 with RC1) — figure 17

39. Wiring Harness Retainer (1) » Remove [2x]
40. Electrical Connector (3) » Disconnect
41. Wiring Harness (2) » Position aside

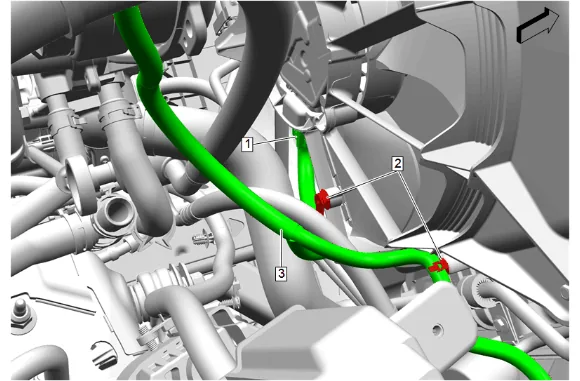

Engine Front Cover Replacement (L87 with RC1) — figure 18

42. Wiring Harness Retainer (2) » Remove [2x]
43. Electrical Connector (1) » Disconnect
44. Wiring Harness (3) » Position aside

Engine Front Cover Replacement (L87 with RC1) — figure 19

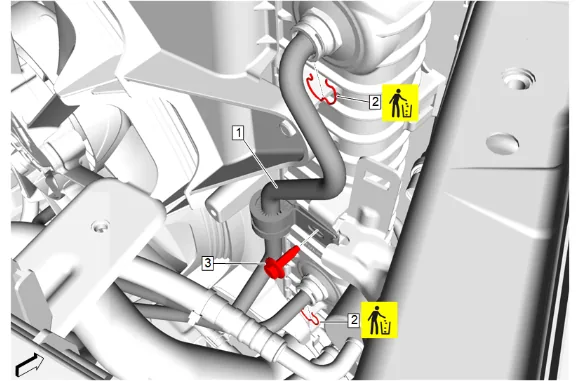

45. Engine Oil Cooler Retainer (2) » Remove and DISCARD [2x]
46. Engine Oil Cooler Pipe Bracket Bolt (3) » Remove
47. Engine Oil Cooler Hose (1) @ Engine Radiator » Remove [2x]

Engine Front Cover Replacement (L87 with RC1) — figure 20

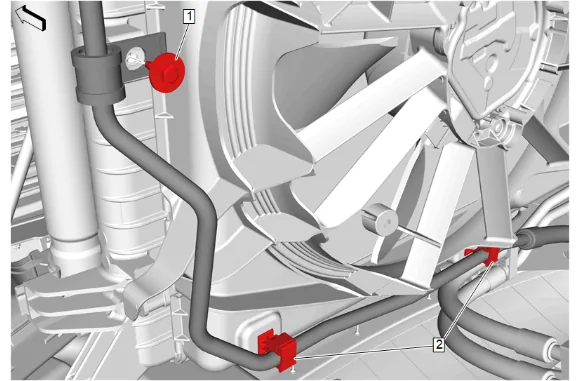

48. Transmission Fluid Cooler Pipe Bolt (1) » Remove
49. Transmission Fluid Cooler Pipe Clip (2) » Remove [2x]

Engine Front Cover Replacement (L87 with RC1) — figure 21

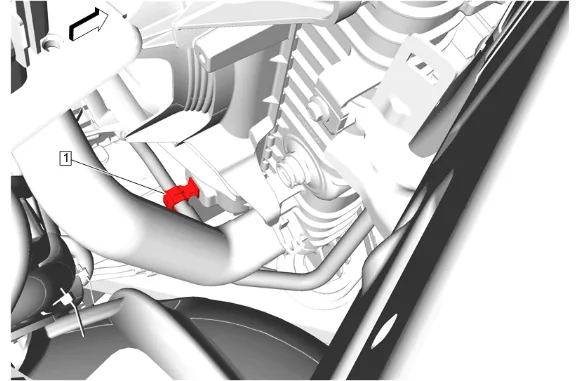

50. Transmission Fluid Cooler Pipe Clip (1) » Release

Engine Front Cover Replacement (L87 with RC1) — figure 22

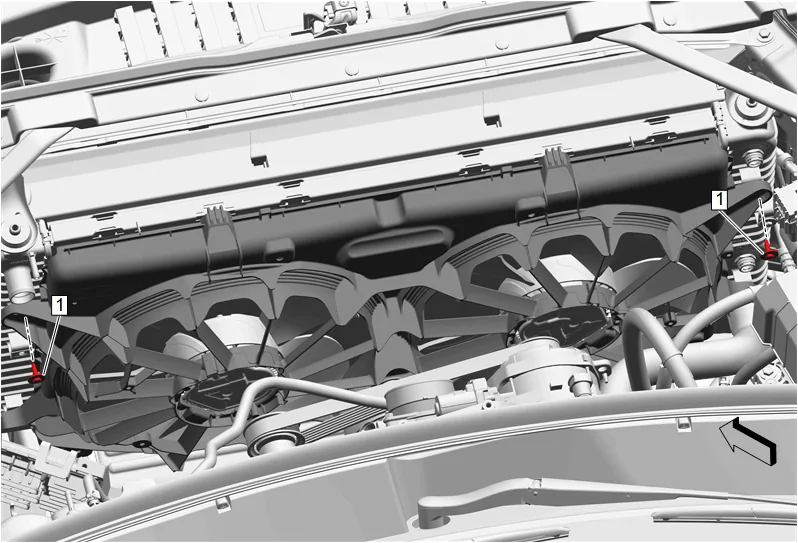

51. Engine Coolant Fan Bracket Bolt (1) » Remove [2x]

Engine Front Cover Replacement (L87 with RC1) — figure 23

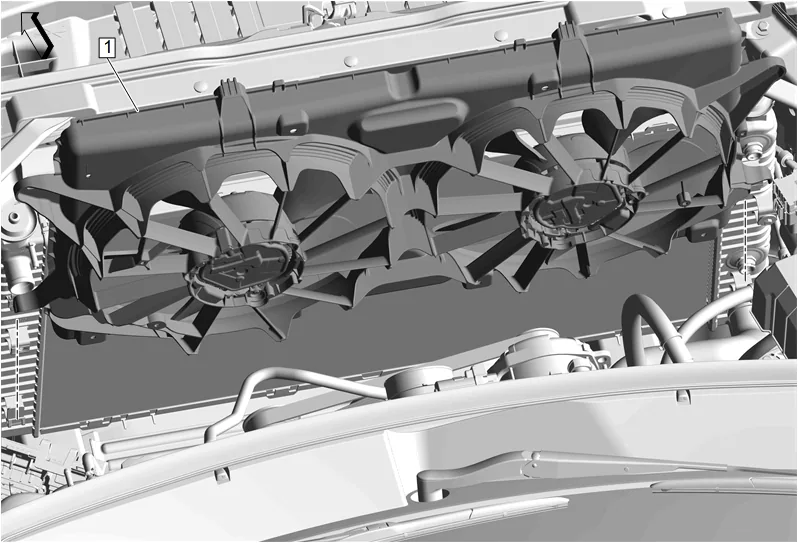

52. Engine Cooler Fan (1) @ Engine Radiator » Remove

Engine Front Cover Replacement (L87 with RC1) — figure 24

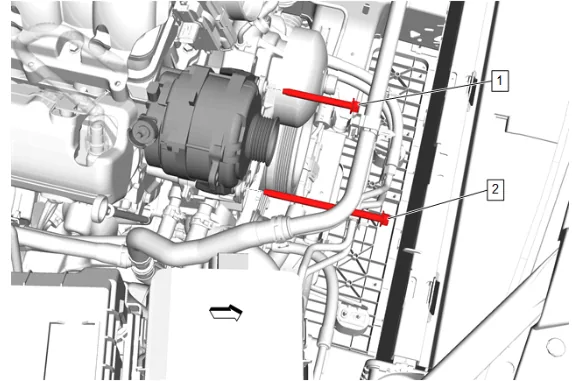

53. Generator Bolt (1) » Remove
54. Generator Bolt (2) » Remove

Engine Front Cover Replacement (L87 with RC1) — figure 25

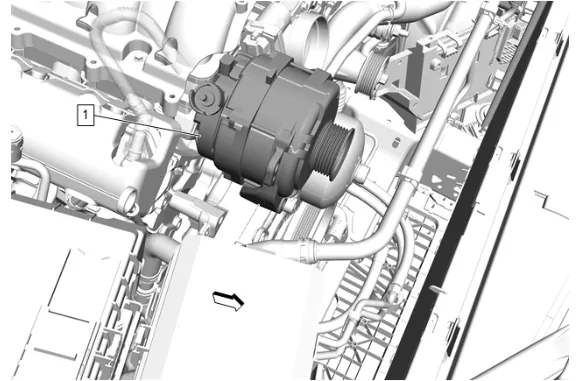

55. Generator (1) » Remove

Engine Front Cover Replacement (L87 with RC1) — figure 26

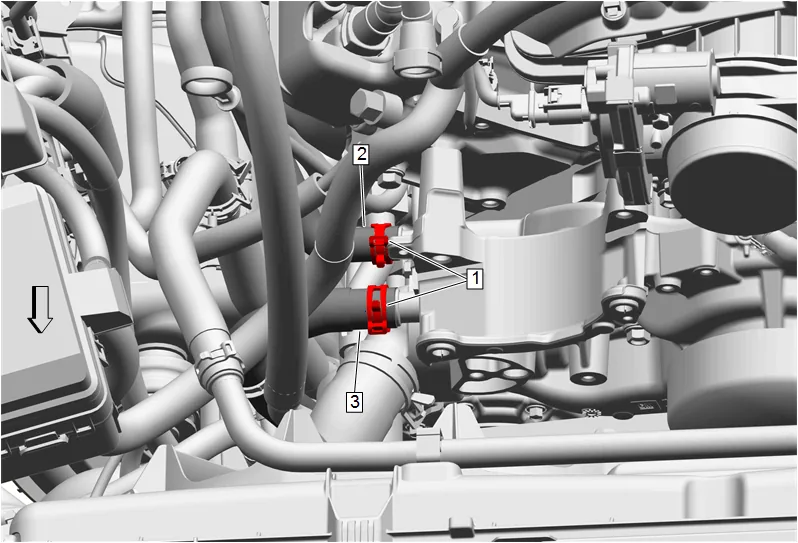

56. Hose Clamp (1) » Disengage [2x] — Hose Clamp Replacement Guidelines - Spring Type
57. Heater Inlet Hose (2) @ Water Pump » Remove
58. Heater Water Auxiliary Pump Hose (3) @ Water Pump » Remove

Engine Front Cover Replacement (L87 with RC1) — figure 27

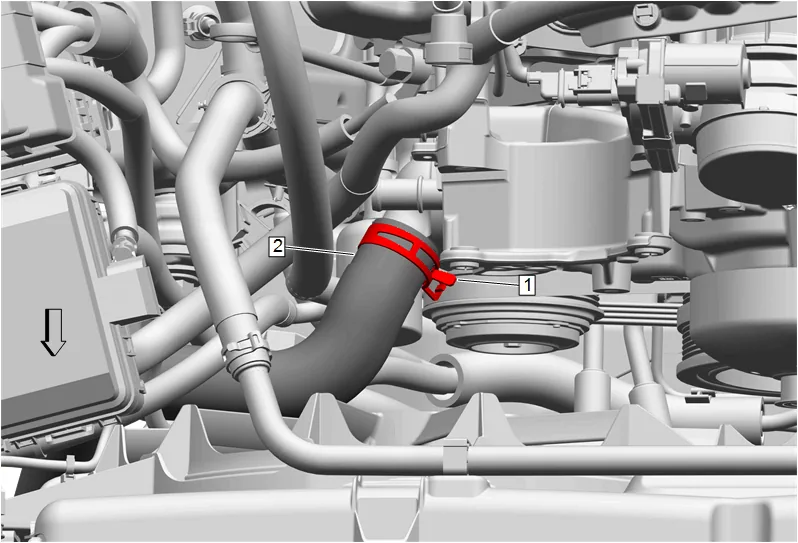

59. Radiator Outlet Hose Clamp (1) » Disengage — Hose Clamp Replacement Guidelines - Spring Type
60. Radiator Outlet Hose (2) @ Water Pump » Remove

Engine Front Cover Replacement (L87 with RC1) — figure 28

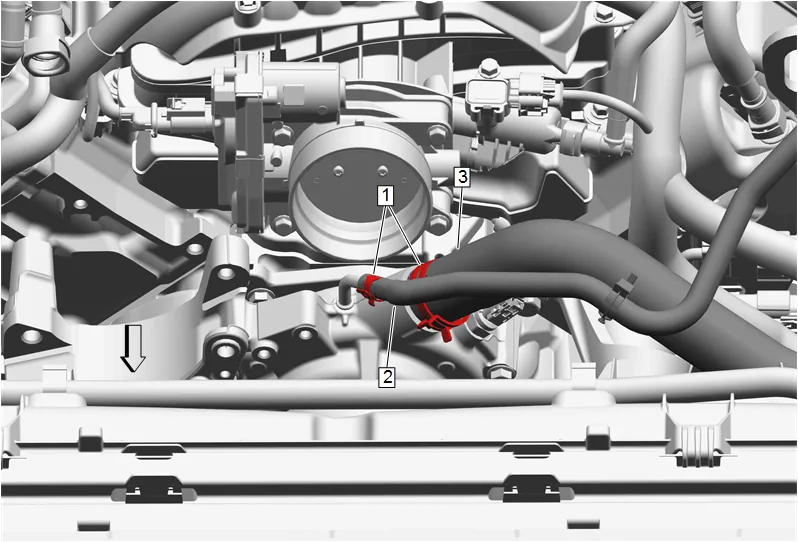

61. Hose Clamp (1) » Disengage [2x] — Hose Clamp Replacement Guidelines - Spring Type
62. Engine Coolant Air Bleed Hose (2) @ Water Pump » Remove
63. Radiator Inlet Hose (3) @ Water Pump » Remove

Engine Front Cover Replacement (L87 with RC1) — figure 29

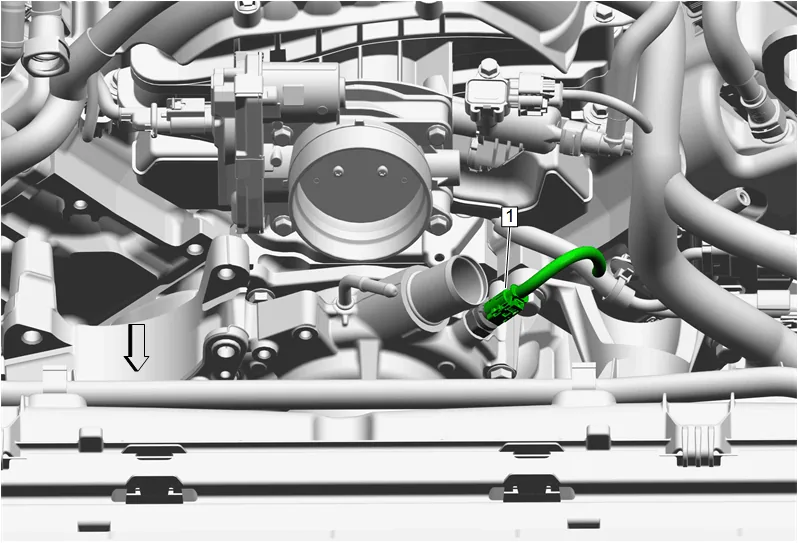

64. Engine Coolant Temperature Sensor Electrical Connector (1) » Disconnect

Engine Front Cover Replacement (L87 with RC1) — figure 30

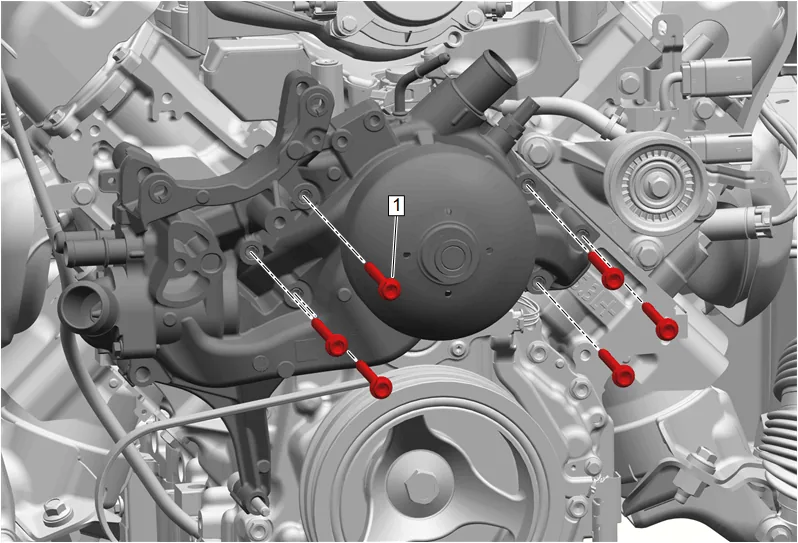

65. Water Pump Bolt (1) » Remove [6x]

Engine Front Cover Replacement (L87 with RC1) — figure 31

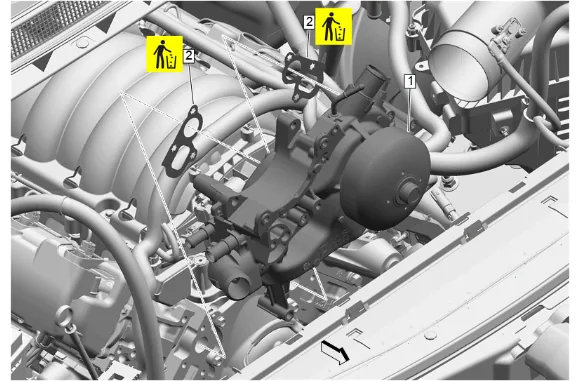

66. Water Pump (1) » Remove
67. Water Pump Gasket (2) » Remove and DISCARD [2x]

Engine Front Cover Replacement (L87 with RC1) — figure 32

Note

If the engine front cover is reused, the crankshaft front oil seal must be replaced.

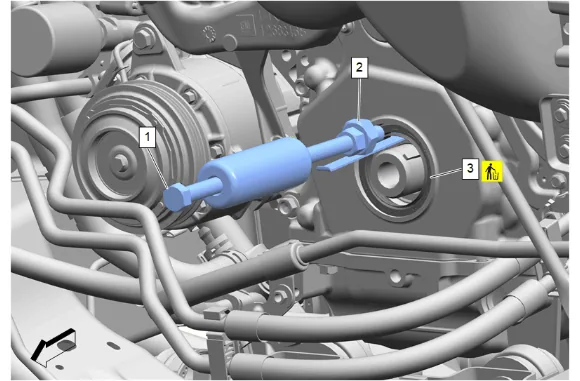

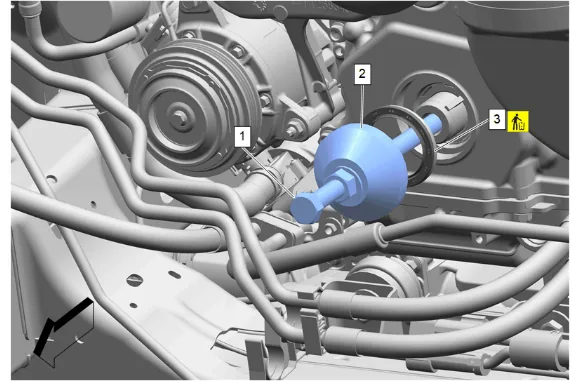

68. If the engine front cover is reused perform the following steps: 68.1. Install the EN-51096 Rear Main Seal Remover (2) to the GE-23907-1 Slide Hammer with Shaft (1).

Note

EN-51096 Crankshaft Rear Main Seal Remover (2) has two ends. The end with the larger bend will be used to remove the crankshaft front oil seal (3). 68.2. Slide the large bend of the EN-51096 Rear Main Seal Remover (2) between the lip of the crankshaft front oil seal and crankshaft. Ensure that the larger bend of the EN-51096 Crankshaft Rear Main Seal Remover (2) engages the rear side of the crankshaft front oil seal (3). 68.3. Using the EN-51096 Rear Main Seal Remover (2) and the GE-23907-1 Slide Hammer with Shaft (1) remove the crankshaft front oil seal (3).

Engine Front Cover Replacement (L87 with RC1) — figure 33

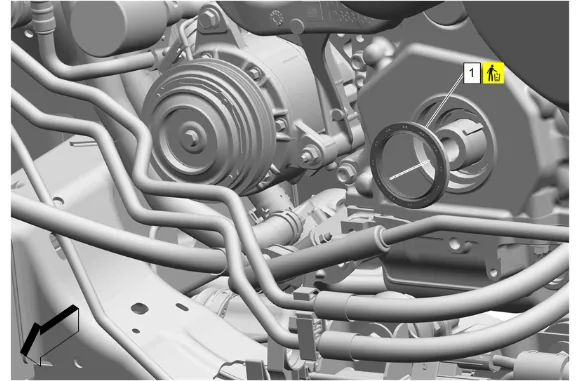

68.4. Crankshaft Front Oil Seal (1) » Remove and DISCARD

Engine Front Cover Replacement (L87 with RC1) — figure 34

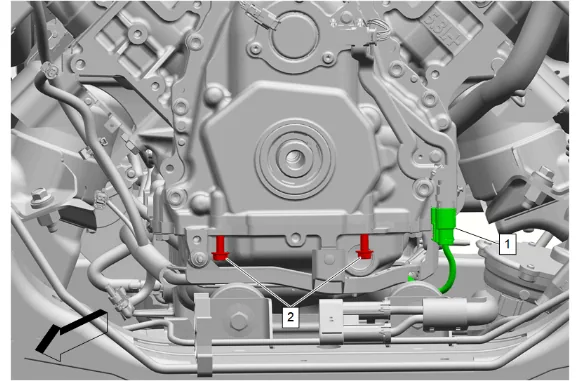

69. Electrical Connector (1) » Disconnect
70. Oil Pan Bolt (2) » Remove [2x]

Engine Front Cover Replacement (L87 with RC1) — figure 35

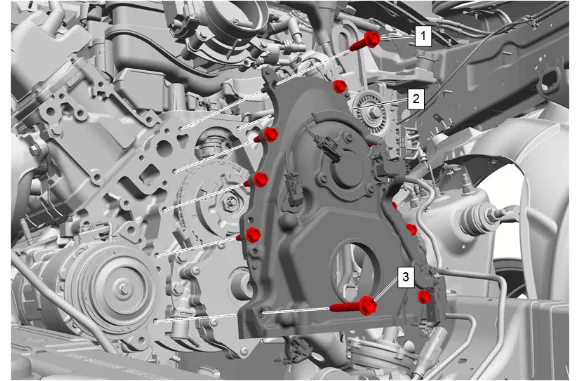

71. Engine Front Cover Bolt (1, 3) » Remove [10x]
72. Engine Front Cover (2) » Remove

Engine Front Cover Replacement (L87 with RC1) — figure 36

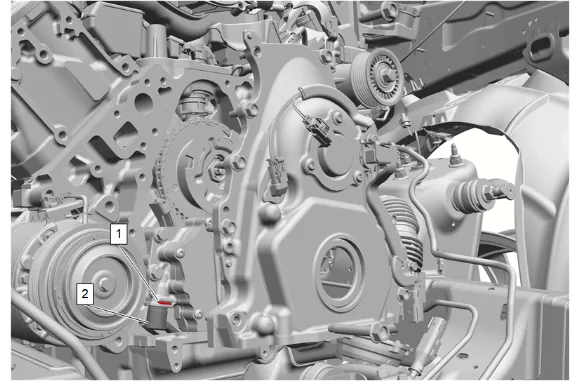

73. Oil Pump Flow Control Solenoid Valve Retainer (1) @ Oil Pump » Release
74. Oil Pump Flow Control Solenoid Valve (2) @ Oil Pump » Remove

Engine Front Cover Replacement (L87 with RC1) — figure 37

75. Camshaft Position Sensor (3) » Disconnect
76. Camshaft Position Actuator Magnet (5) » Disconnect
77. Oil Pump Flow Control Solenoid Valve Wire (4) » Disconnect
78. Camshaft Position Sensor Bracket Bolt (2) » Remove [2x]
79. Remove the wiring harness. (1)

Engine Front Cover Replacement (L87 with RC1) — figure 38

80. Camshaft Position Sensor (1) » Remove
81. Camshaft Position Sensor Seal (2) » Remove and DISCARD

Engine Front Cover Replacement (L87 with RC1) — figure 39

82. Camshaft Position Actuator Magnet Bolt (2) » Remove [3x]
83. Camshaft Position Actuator Magnet (1) » Remove
84. Camshaft Position Actuator Magnet Gasket (3) » Remove and DISCARD

Engine Front Cover Replacement (L87 with RC1) — figure 40

85. Oil Pump Flow Control Solenoid Valve Wire Clip (1) @ Engine Front Cover » Unclip [2x]
86. Oil Pump Flow Control Solenoid Valve » Disconnect

Engine Front Cover Replacement (L87 with RC1) — figure 41

87. Oil Pump Flow Control Solenoid Valve Wire (1) » Remove Cleaning and Inspection Procedure - Required

Engine Front Cover Replacement (L87 with RC1) — figure 42

1. Clean the crankshaft balancer (1) in solvent.
2. Clean the belt grooves of all dirt or debris with a wire brush.
3. Dry the crankshaft balancer (1) with compressed air.
4. Inspect the crankshaft balancer (1) for the following conditions: 4.1. Worn, grooved, or damaged hub seal surface 4.2. A crankshaft balancer (1) hub seal surface with excessive scoring, grooves, rust or other damage must be replaced. 4.3. Minor imperfections on the crankshaft balancer (1) hub seal surface may be removed with polishing compound or fine grade emery cloth.

Note

In order for the belt to track properly, the belt grooves should be free of all dirt or debris. 4.4. Dirty or damaged belt grooves: The crankshaft balancer (1) belt grooves should be free of any nicks, gouges, or other damage that may not allow the belt to track properly. 4.5. Minor imperfections may be removed with a fine file. 4.6. Worn, chunking, or deteriorated rubber between the hub and pulley.

Engine Front Cover Replacement (L87 with RC1) — figure 43

1. Clean all excess dirt and debris from the water pump (1).
2. Inspect the water pump (1) for the following conditions: 2.1. Water pump gasket and hose sealing surfaces for excessive scratches or gouging 2.2. Restrictions within the internal coolant passages 2.3. Excessive side-to-side play in the pulley shaft 2.4. Leakage at the water inlet housing or rear cover 2.5. Leakage at the water outlet housing or water pump outlet 2.6. Leakage at the water pump vent hole A stain around the vent hole is acceptable. If leakage or dripping occurs with the engine running and the cooling system pressurized, replace the water pump (1). 2.7. Wear or damage in the belt tracking area of the water pump pulley Cleaning and Inspection Procedure - Conditional

Note

The following cleaning and inspection and/or overhaul steps are ONLY to be performed as determined necessary based on the condition of the part being removed with the intention of reinstallation. The labor time to perform any of these steps is not included in the base labor time and if required would need to be documented and submitted as Other Labor Hours for warranty claim reimbursement. A description of the repairs performed must be documented in the technician correction comments.

Engine Front Cover Replacement (L87 with RC1) — figure 44

Warning

Refer to Safety Glasses and Compressed Air Warning.

Caution

When cleaning the sealing surfaces of engine components, DO NOT use bristle discs, abrasive pads, wire wheels or surface conditioning discs. These types of devices should not be used because they produce a very fine grit that is abrasive and known to cause internal engine damage. The bristle discs and pads are embedded with abrasive material and wear down as they clean, continually exposing fresh abrasive to the surface of the component.

Note

Care must be used to avoid gouging or scraping the sealing surfaces. Do not use any other method or technique to remove sealant or gasket material from a part. Do not use abrasive pads, sand paper, or power tools to clean the gasket surfaces. Abrasive pads also produce a fine grit that the oil filter cannot remove from the oil. This grit is abrasive and has been known to cause internal engine damage. These methods of cleaning can cause damage to the component sealing surfaces.

1. Clean the cover in solvent. Remove the sealant from the front cover to the oil pan surface.

2. Dry the cover with compressed air.

3. Inspect the gasket sealing surfaces (1) for excessive scratches or gouging.

4. Inspect the threaded bolt holes (2, 3, 5) for damaged threads or debris.

5. Inspect the camshaft position sensor pass-thru hole and sealing surface (4) for excessive scratches or gouging.

6. Inspect the oil flow control valve connector pass-thru hole and sealing surface (6) for excessive scratches or gouging. Installation Procedure

7. Camshaft Position Actuator Magnet Gasket (3) » Install NEW

8. Camshaft Position Actuator Magnet (1) » Install

9. Camshaft Position Actuator Magnet Bolt (2) » Install and hand tighten [3x]

Caution

Refer to Fastener Caution.

4. Camshaft Position Actuator Magnet Bolt (2) » Tighten [3x] — Fastener Specifications

5. Camshaft Position Sensor Seal (2) » Install NEW

6. Camshaft Position Sensor (1) » Install

7. Install the wiring harness. (1)

8. Camshaft Position Sensor (3) » Connect

9. Camshaft Position Actuator Magnet (5) » Connect

10. Oil Pump Flow Control Solenoid Valve Wire (4) » Connect

11. Camshaft Position Sensor Bracket Bolt (2) » Install and hand tighten [2x]

12. Camshaft Position Sensor Bracket Bolt (2) » Tighten [2x] — Fastener Specifications

13. Oil Pump Flow Control Solenoid Valve Wire (1) » Install

14. Oil Pump Flow Control Solenoid Valve » Connect

15. Oil Pump Flow Control Solenoid Valve Wire Clip (1) @ Engine Front Cover » Connect [2x]

Engine Front Cover Replacement (L87 with RC1) — figure 45

Note

Install and align the front cover within 10 minutes of applying the sealer. Ensure proper use of room temperature vulcanizing (RTV) sealant. Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant

16. Apply a 3 mm (0.118 in) bead of RTV sealant on the engine front cover as shown (1). Adhesives, Fluids, Lubricants, and Sealers
17. Apply a 5 mm (0.197 in) bead of RTV sealant on the engine front cover as shown (2). Adhesives, Fluids, Lubricants, and Sealers

Engine Front Cover Replacement (L87 with RC1) — figure 46

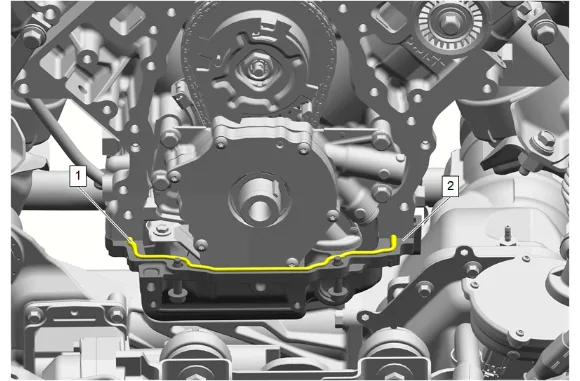

18. Apply a 3 mm (0.118 in) bead of RTV sealant (1) to the engine oil pan (2). Adhesives, Fluids, Lubricants, and Sealers

19. Oil Pump Flow Control Solenoid Valve (2) @ Oil Pump » Install

20. Oil Pump Flow Control Solenoid Valve Retainer (1) @ Oil Pump » Install

21. Engine Front Cover (2) » Install

22. Engine Front Cover Bolt (1, 3) » Install and hand tighten [10x]

23. Engine Front Cover Bolt (1, 3) » Tighten in sequence [10x] — Fastener Specifications

Engine Front Cover Replacement (L87 with RC1) — figure 47

Note

If the engine front cover is reused, the crankshaft front oil seal must be replaced.

24. If the engine front cover is reused perform the following steps:

Note

For proper orientation, note the installation direction of the crankshaft front oil seal. The crankshaft front oil seal is a reverse-lip design. Install with “THIS SIDE OUT” displayed as shown. Do NOT lubricate the crankshaft front oil seal sealing surface. 24.1. Install the EN-41478-A Crankshaft Front Oil Seal Installer (1) to the EN-51091 Crankshaft Front Oil Seal Installer (2). 24.2. Install the NEW crankshaft front oil seal (3) with “THIS SIDE OUT” facing away from the engine to the EN-51091 Crankshaft Front Oil Seal Installer (2). 24.3. Install the EN-41478-A Crankshaft Front Oil Seal Installer (1) and the EN-51091 Crankshaft Front Oil Seal Installer (2) into the crankshaft. 24.4. Rotate the EN-51091 Crankshaft Front Oil Seal Installer (2) clockwise until the NEW crankshaft front oil seal (3) enters the engine front cover and seats into the bottom of the engine front cover. 24.5. Remove the EN-41478-A Crankshaft Front Oil Seal Installer (1) and the EN-51091 Crankshaft Front Oil Seal Installer (2) from the crankshaft and engine front cover. 24.6. Inspect the crankshaft front oil seal for proper installation. The crankshaft front oil seal should be installed evenly and completely into the engine front cover.

25. Electrical Connector (1) » Connect
26. Oil Pan Bolt (2) » Install and tighten [2x] — Fastener Specifications
27. Raise and support the vehicle. Lifting and Jacking the Vehicle

Engine Front Cover Replacement (L87 with RC1) — figure 48

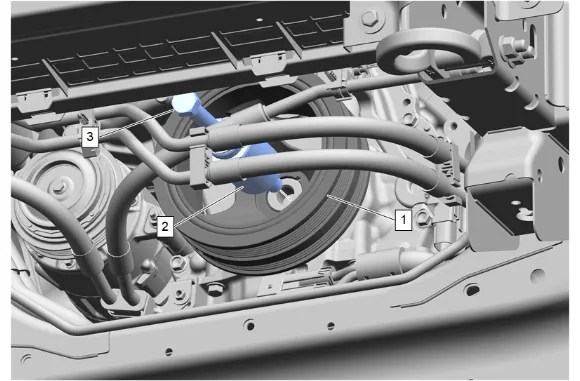

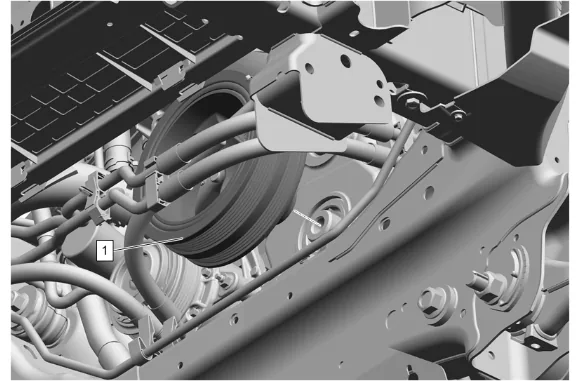

28. Crankshaft Balancer (1) » Loosely install

Engine Front Cover Replacement (L87 with RC1) — figure 49

29. Install the EN-41478-A Crankshaft Front Oil Seal Installer (3) and the EN-41665-A Crankshaft Balancer and Sprocket Installer (2) to the crankshaft.
30. Using the EN-41665-A Crankshaft Balancer and Sprocket Installer (2) properly seat the crankshaft balancer (1).
31. Remove the EN-41478-A Crankshaft Front Oil Seal Installer (3) and the EN-41665-A Crankshaft Balancer and Sprocket Installer (2).

Engine Front Cover Replacement (L87 with RC1) — figure 50

Note

The balancer holding kit (1) should be assembled as it is installed on the crankshaft balancer (3). Some components not shown for graphic clarity.

32. Install the EN-52287 Balancer Holding Kit (1) and the EN-956-1 Extension Bar (2) to the crankshaft balancer (3).

Engine Front Cover Replacement (L87 with RC1) — figure 51

33. Crankshaft Balancer Bolt (1) » Install NEW and tighten — Fastener Specifications

34. Remove the EN-52287 Balancer Holding Kit (3) and the EN-956-1 Extension Bar (4) from the crankshaft balancer (2).

35. Underbody Skid Shield (3) » Install

36. Underbody Skid Shield Bolt (2) » Install and tighten [2x] — Fastener Specifications

37. Underbody Splash Shield (1) » Install

38. Underbody Splash Shield Bolt (1) » Install and tighten [4x] — Fastener Specifications

39. Underbody Splash Shield Bolt (2) » Install and tighten [4x] — Fastener Specifications

Engine Front Cover Replacement (L87 with RC1) — figure 52

Caution

Refer to Component Fastener Tightening Caution.

40. Oil Filter (1) » Install and tighten — Engine Oil and Oil Filter Replacement

41. Remove the support and lower the vehicle.

42. Water Pump Gasket (2) » Install NEW [2x]

43. Water Pump (1) » Install

44. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps: 44.1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth. 44.2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive. 44.3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers 44.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

45. Water Pump Housing Bolt (1) » Install and hand tighten [6x]

46. Water Pump Housing Bolt (1) » Tighten in sequence [6x] — Fastener Specifications

47. Engine Coolant Temperature Sensor Electrical Connector (1) » Connect

48. Radiator Inlet Hose (3) @ Water Pump » Install

49. Engine Coolant Air Bleed Hose (2) @ Water Pump » Install

50. Hose Clamp (1) » Engage [2x] — Hose Clamp Replacement Guidelines - Spring Type

51. Radiator Outlet Hose (2) @ Water Pump » Install

52. Radiator Outlet Hose Clamp (1) » Engage — Hose Clamp Replacement Guidelines - Spring Type

53. Heater Water Auxiliary Pump Hose (3) @ Water Pump » Install

54. Heater Inlet Hose (2) @ Water Pump » Install

55. Hose Clamp (1) » Engage [2x] — Hose Clamp Replacement Guidelines - Spring Type

56. Air Conditioning Compressor (1) » Install

57. Air Conditioning Compressor Bolt (1) » Loosely install

58. Air Conditioning Compressor Stud (3) » Install and tighten — Fastener Specifications

59. Air Conditioning Compressor Bolt (1) » Tighten — Fastener Specifications

60. Air Conditioning Compressor Nut (2) » Install and tighten — Fastener Specifications

61. Generator (1) » Install

62. Generator Bolt (1) » Install and tighten — Fastener Specifications

63. Generator Bolt (2) » Install and tighten — Fastener Specifications

64. Engine Cooler Fan (1) @ Engine Radiator » Install

65. Engine Coolant Fan Bracket Bolt (1) » Install and tighten [2x] — Fastener Specifications

66. Transmission Fluid Cooler Pipe Clip (1) » Secure

67. Transmission Fluid Cooler Pipe Clip (2) » Install [2x]

68. Transmission Fluid Cooler Pipe Bolt (1) » Install and tighten — Fastener Specifications

69. Engine Oil Cooler Hose (1) @ Engine Radiator » Install [2x]

70. Engine Oil Cooler Pipe Bracket Bolt (3) » Install and tighten — Fastener Specifications

71. Engine Oil Cooler Retainer (2) » Install NEW [2x]

72. Position the wiring harness. (3)

73. Electrical Connector (1) » Connect

74. Wiring Harness Retainer (2) » Install [2x]

75. Position the wiring harness. (2)

76. Electrical Connector (3) » Connect

77. Wiring Harness Retainer (1) » Install [2x]

78. Radiator Inlet Hose (3) @ Engine Radiator » Install

79. Radiator Inlet Hose Clamp (1) » Engage — Hose Clamp Replacement Guidelines - Spring Type

80. Radiator Inlet Hose Clip (2) » Install

81. Radiator Surge Tank Outlet Hose (3) » Move into position

82. Radiator Surge Tank Outlet Hose Clip (2) » Install [2x]

83. Engine Oil Cooler Hose Clip (1) » Secure

84. Starter Solenoid Cable (2) » Install

85. Battery Positive Cable Nut (1) » Install and tighten — Fastener Specifications

86. Electrical Connector (3) » Connect

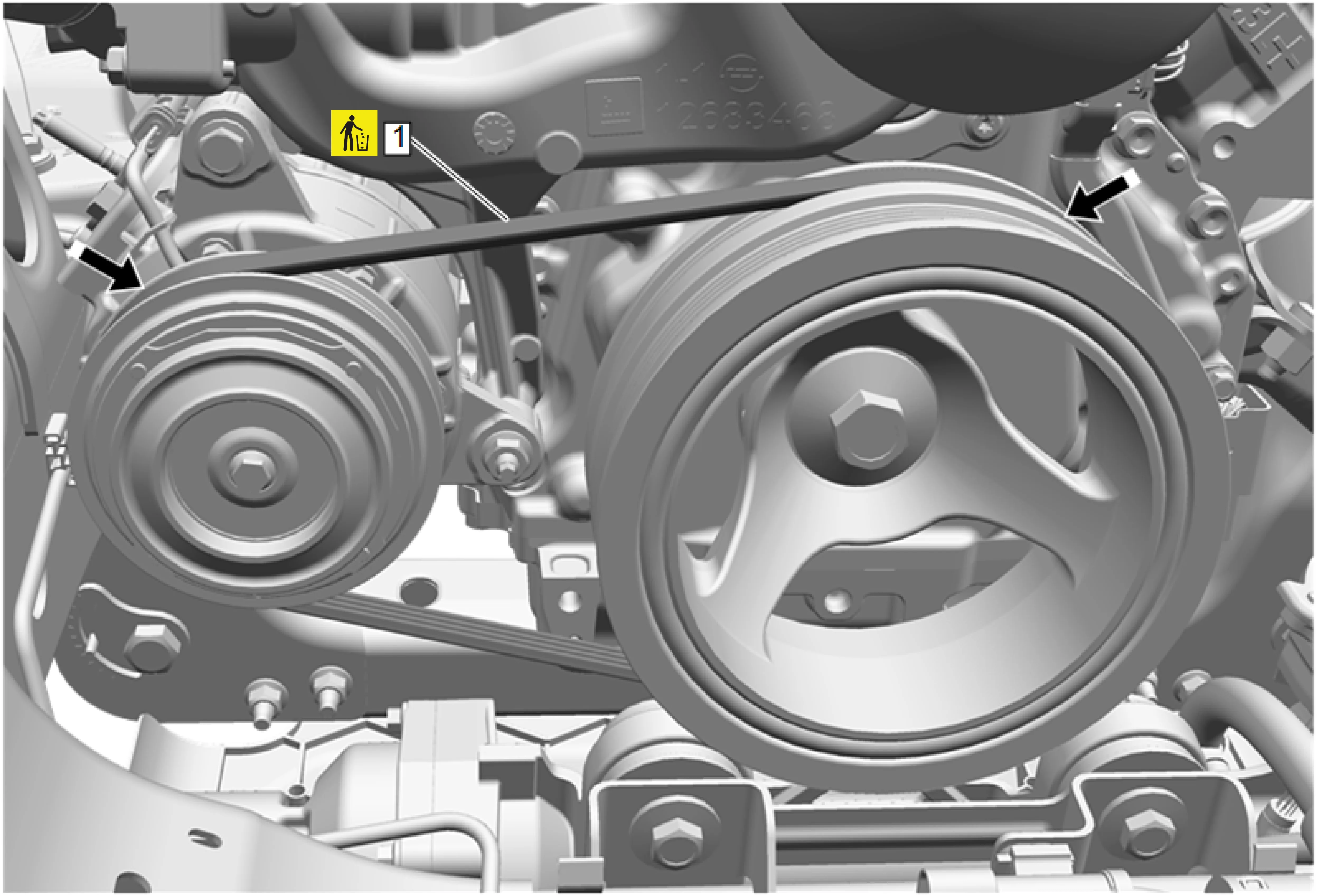

Engine Front Cover Replacement (L87 with RC1) — figure 53

Note

The OEM replacement stretchy accessory drive auxiliary belt is packaged with a disposable installation tool and installation instructions.

87. Install the accessory drive auxiliary belt (1) following the instructions included with the accessory drive auxiliary belt.
88. Inspect the accessory drive auxiliary belt (1) for proper installation and alignment.

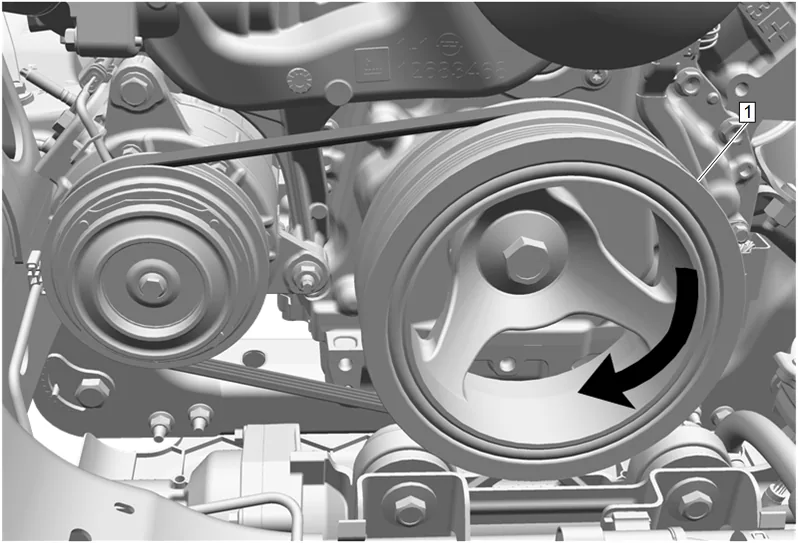

Engine Front Cover Replacement (L87 with RC1) — figure 54

89. Rotate the crankshaft balancer (1) an additional 360 degrees to ensure proper accessory drive auxiliary belt installation.

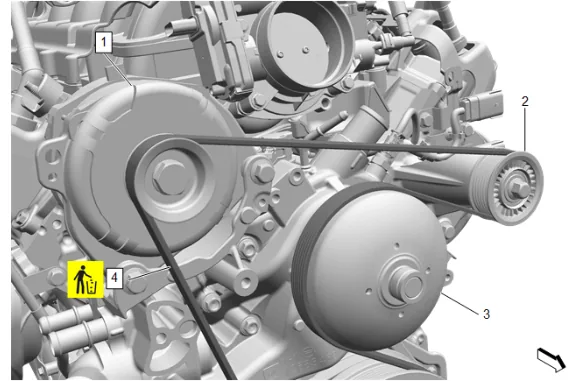

Engine Front Cover Replacement (L87 with RC1) — figure 55

90. Position the accessory drive primary belt (4) on the belt idler pulley (2), fan and water pump pulley (3), and generator (1).

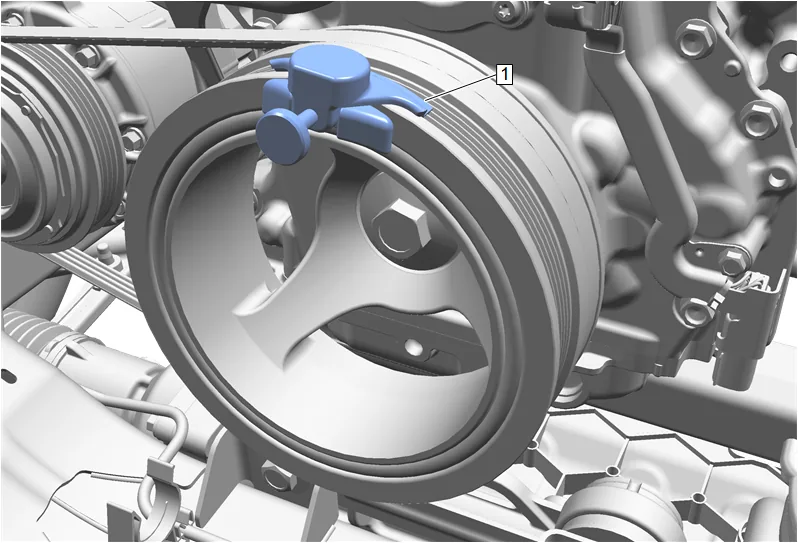

Engine Front Cover Replacement (L87 with RC1) — figure 56

91. Install the EN-51767-2 Stretchy Belt Installer (1) onto the crankshaft balancer.

Engine Front Cover Replacement (L87 with RC1) — figure 57

92. Position the accessory drive primary belt (2) on the crankshaft balancer.
93. Slowly rotate the crankshaft balancer in a clockwise direction until the accessory drive primary belt (2) fully seats on the crankshaft balancer.
94. Remove the EN-51767-2 Stretchy Belt Installer (1) from the crankshaft balancer.

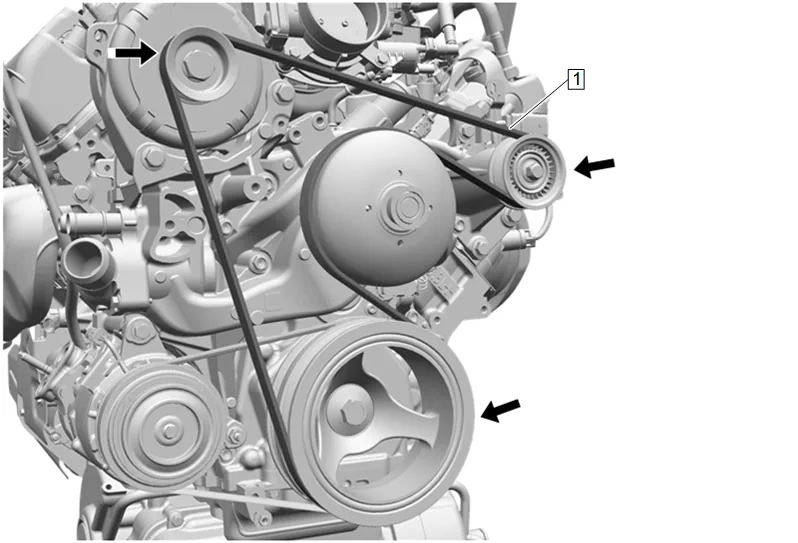

Engine Front Cover Replacement (L87 with RC1) — figure 58

95. Inspect the accessory drive primary belt (1) for proper installation and alignment.

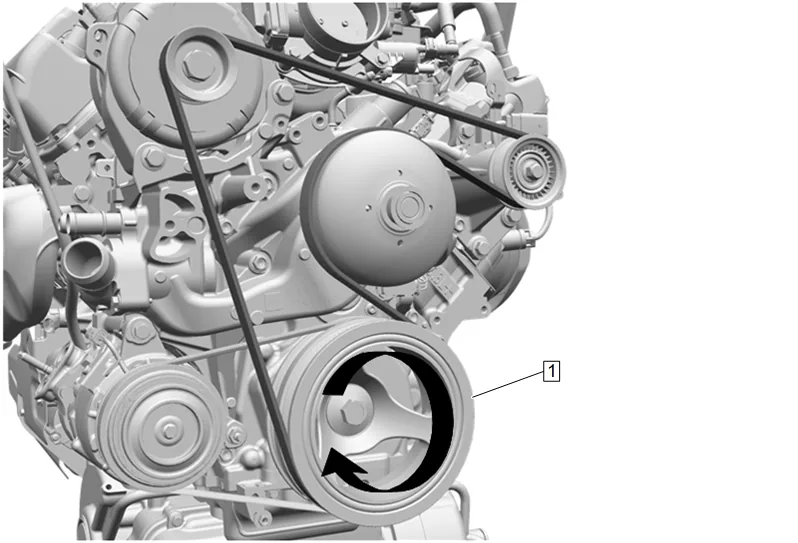

Engine Front Cover Replacement (L87 with RC1) — figure 59

96. Rotate the crankshaft balancer (1) an additional 360 degrees to ensure proper accessory drive primary belt installation.

97. Air Cleaner Outlet Duct (3) » Install

98. Air Cleaner Outlet Duct Clamp (2) » Tighten [2x] — Fastener Specifications

99. Positive Crankcase Ventilation Fresh Air Tube (1) » Connect — Plastic Collar Quick Connect Fitting Service

100. Air Cleaner Outlet Duct Bracket Bolt (1) » Install and tighten — Fastener Specifications

101. Install engine wiring harness to air cleaner outlet duct bracket.

102. Fill the engine oil to the proper level with NEW engine oil. Approximate Fluid Capacities Adhesives, Fluids, Lubricants, and Sealers

103. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection

104. Fill the cooling system. Cooling System Draining and Filling

105. Start the engine and check for coolant leaks.
